WEG

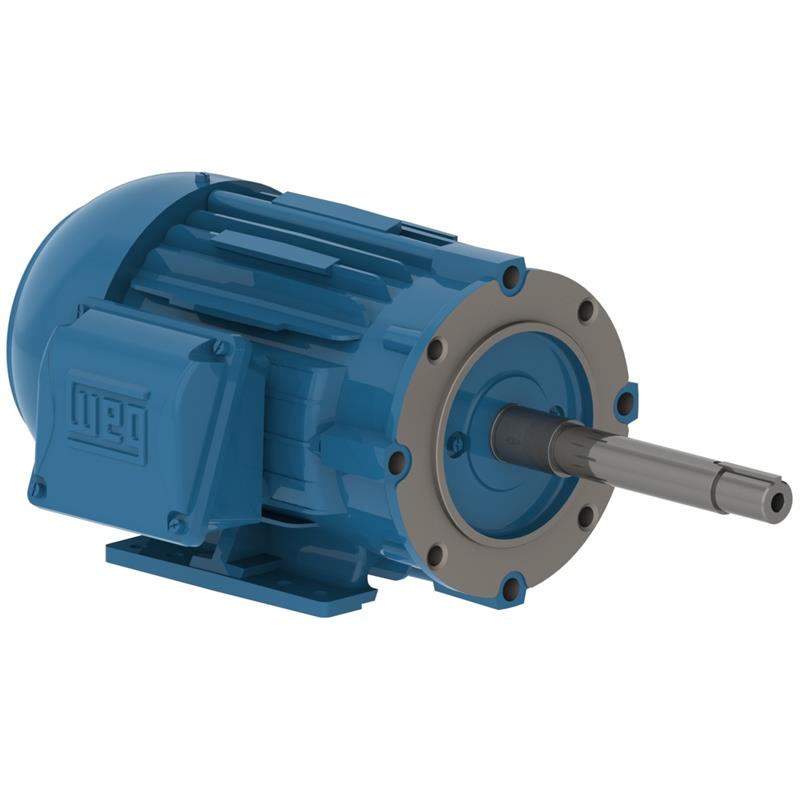

02036ET3E256JP-W22 WEG Motor, Close Coupled Pump (20 HP, 256JP FRAME, 460 V, THREE PHASE, TEFC , 3520 RPM)

02036ET3E256JP-W22 WEG Motor, Close Coupled Pump (20 HP, 256JP FRAME, 460 V, THREE PHASE, TEFC , 3520 RPM)

02036ET3E256JP-W22

$2,199.36 USD
$2,199.36 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 02036ET3E256JP-W22, 20 HP, RPM: 3520, FRAME: 256JP, 460 V, THREE PHASE: 60 Hz, : TEFC, WEG Close Coupled Pump Motor

Applications
Specially developed line for industrial and commercial pumping applications, such as Water pumping, Process, and Transfer and circulating pumps
Features
Close Coupled Pump Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC, JM & JP

Tech Specs

Brand
WEG Motors
Model Number
02036ET3E256JP-W22
HP
20 HP
RPM
3520
FRAME
256JP
VOLTAGE
460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
269
FEET
YES
TERMINAL BOX
LEFT
FLANGE
FC-184
RATED CURRENT
23.2 A
LOCKED ROTOR CURRENT IL IN
6
LOCKED ROTOR CURRENT
139 A
LOCKED ROTOR TORQUE
2
BREAKDOWN TORQUE
2.4
EFFICIENCY 50
91
EFFICIENCY 75
91.7
EFFICIENCY 100
91
POWER FACTOR 50
0.82
POWER FACTOR 75
0.87
POWER FACTOR 100
0.89
SERVICE FACTOR
1.25
INERTIA KGM2
0.06471 kgm
INERTIA SQ FT LB
1.5356 sq.ft.
LOCKED ROTOR TIME
21 s
NOISE LEVEL
72 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
6.50 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
39.9 Nm
FULL LOAD TORQUE LB FT
29.4 .ft
SLIP
0.0222
DESIGN
B
TEMPERATURE RISE
80 K
BEARINGS D E
6309 C3
BEARINGS N D E
6209 C3
REGREASING INTERVAL D E
19000 h
REGREASING INTERVAL N D E
20000 h
GREASE AMOUNT D E
13 g
GREASE AMOUNT N D E
9 g
