WEG

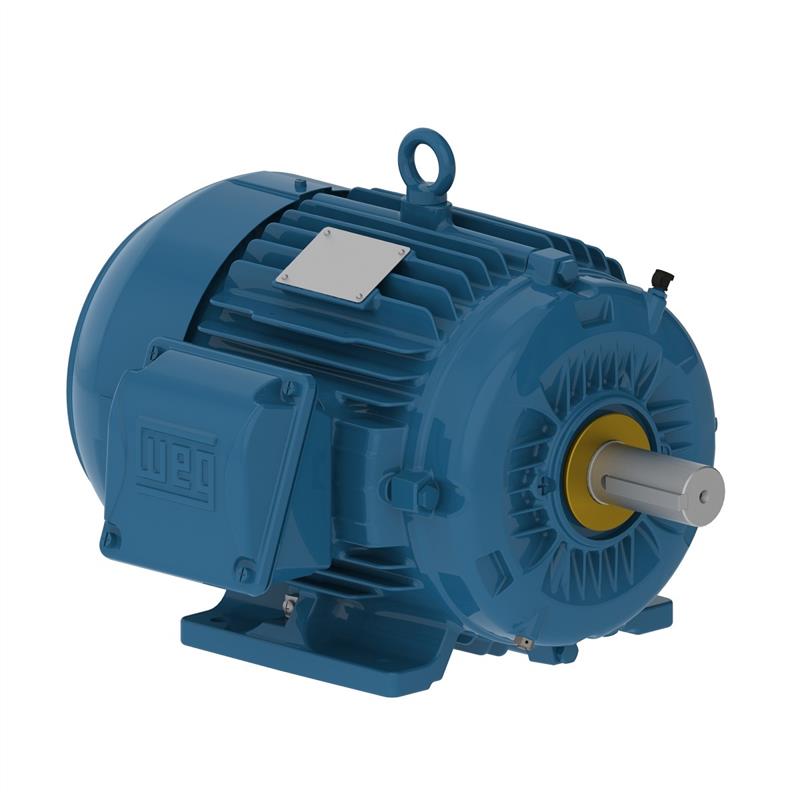

02018ST3HIE256T-W22 WEG Motor (20 HP, 256T FRAME, 575 V, THREE PHASE, TEFC , 1765 RPM)

02018ST3HIE256T-W22 WEG Motor (20 HP, 256T FRAME, 575 V, THREE PHASE, TEFC , 1765 RPM)

SKU:02018ST3HIE256T-W22

Regular price $1,892.56 USD
Regular price Sale price $1,892.56 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 02018ST3HIE256T-W22, 20 HP, RPM: 1765, FRAME: 256T, 575 V, THREE PHASE: 60 Hz, : TEFC, WEG Motor

Applications
Pumping applications, Pulp and paper mills, ical, Other
Features
IEEE 841 Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC

Tech Specs

Brand
WEG Motors
Model Number
02018ST3HIE256T-W22
HP
20 HP
RPM
1765
FRAME
256T
VOLTAGE
575 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT LB
291
FEET
YES
TERMINAL BOX
LEFT
FLANGE
-
RATED CURRENT
19.3 A
LOCKED ROTOR CURRENT IL IN
6.6
LOCKED ROTOR CURRENT
127 A
LOCKED ROTOR TORQUE
2.3
BREAKDOWN TORQUE
2.7
EFFICIENCY 50
91.7
EFFICIENCY 75
92.4
EFFICIENCY 100
93
POWER FACTOR 50
0.68
POWER FACTOR 75
0.79
POWER FACTOR 100
0.84
SERVICE FACTOR
1.25
INERTIA KGM2
0.13048 kgm
INERTIA SQ FT LB
3.0963 sq.ft.
LOCKED ROTOR TIME
15 s
NOISE LEVEL
64 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
8.00 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
79.6 Nm
FULL LOAD TORQUE LB FT
58.7 .ft
SLIP
0.0194
DESIGN
B
TEMPERATURE RISE
80 K
BEARINGS D E
6309 C3
BEARINGS N D E
6209 C3
REGREASING INTERVAL D E
20000 h
REGREASING INTERVAL N D E
20000 h
GREASE AMOUNT D E
13 g
GREASE AMOUNT N D E
9 g
-
-
