WEG

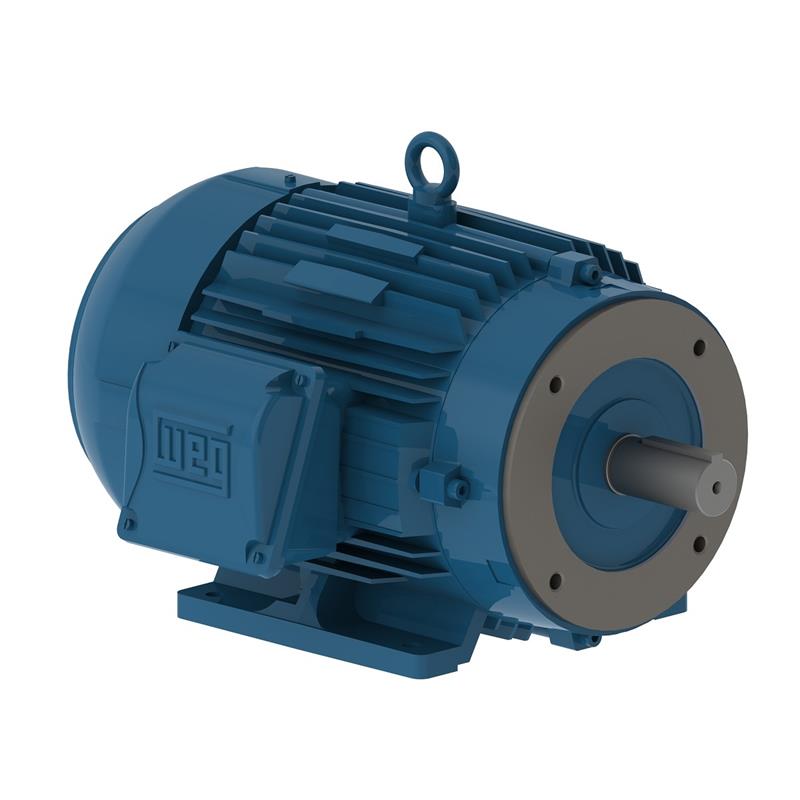

02018ET3E256TC-W22 WEG Motor (20 HP, 256TC FRAME, 208-230/460 V, THREE PHASE, TEFC , 1765 RPM)

02018ET3E256TC-W22 WEG Motor (20 HP, 256TC FRAME, 208-230/460 V, THREE PHASE, TEFC , 1765 RPM)

02018ET3E256TC-W22

$1,654.26 USD
$1,654.26 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 02018ET3E256TC-W22, 20 HP, RPM: 1765, FRAME: 256TC, 208-230/460 V, THREE PHASE: 60 Hz, : TEFC, WEG General Purpose Motor
Applications
Chemical plants, Compressors, Pulp and paper mills, Crushers, Refineries, Pumps, Steel mills, Fans, Cement mills, Packaging equipment
Features
WEG General Purpose Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC

Tech Specs

Brand
WEG Motors
Model Number
02018ET3E256TC-W22
HP
20 HP
RPM
1765
FRAME
256TC
VOLTAGE
208-230/460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
291
FEET
YES
TERMINAL BOX
LEFT
FLANGE
FC-184
RATED CURRENT
24.1 A
LOCKED ROTOR CURRENT IL IN
6.6
LOCKED ROTOR CURRENT
159 A
LOCKED ROTOR TORQUE
2.3
BREAKDOWN TORQUE
2.7
EFFICIENCY 50
91.7
EFFICIENCY 75
92.4
EFFICIENCY 100
93
POWER FACTOR 50
0.68
POWER FACTOR 75
0.79
POWER FACTOR 100
0.84
SERVICE FACTOR
1.25
INERTIA KGM2
0.13048 kgm
INERTIA SQ FT LB
3.0963 sq.ft.
LOCKED ROTOR TIME
15 s
NOISE LEVEL
64 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
10.0 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
79.6 Nm
FULL LOAD TORQUE LB FT
58.7 .ft
SLIP
0.0194
DESIGN
B
TEMPERATURE RISE
80 K
BEARINGS D E
6309 C3
BEARINGS N D E
6209 C3
REGREASING INTERVAL D E
20000 h
REGREASING INTERVAL N D E
20000 h
GREASE AMOUNT D E
13 g
GREASE AMOUNT N D E
9 g
