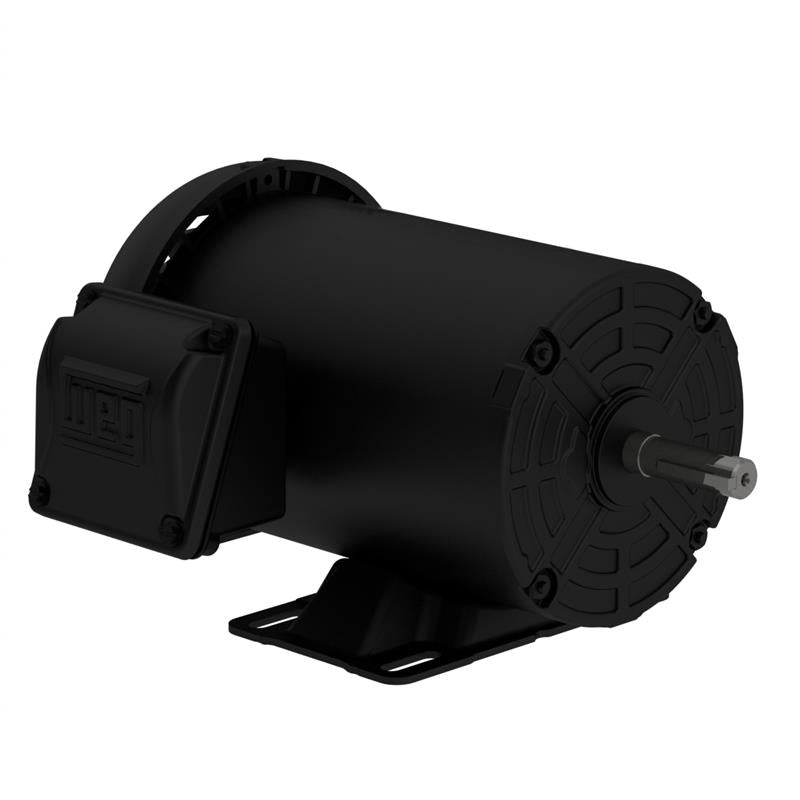

02018ET3E256T-S WEG Motor (20 HP, 1800 RPM, 3 Phase, 60 Hz, 254/6T Frame, TEFC, 230/460 V)

02018ET3E256T-S WEG Motor (20 HP, 1800 RPM, 3 Phase, 60 Hz, 254/6T Frame, TEFC, 230/460 V)

[COUNT] shoppers are looking at this right now

02018ET3E256T-S

$1,707.02 USD
$1,918.00 USD $1,707.02 USD
Sale Sold out
Shipping calculated at checkout.

WEG 02018ET3E256T-S, 20 HP, 1800 RPM, 3 Phase, 60 Hz, 254/6T Frame, Foot-mounted, TEFC, 230/460 V
Applications
General Application
Features
Rated Output: 0.25 to 25 HP
Number of Poles: 2 to 6
Class F insulation
Frame Sizes: NEMA 56 to 254/6T
Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V)
F1 mount as standard
Aluminum endshields
New ventilation system for improved thermal performance
Robust foot design suitable for tougher applications
IP55 Ingress protection as standard, being appropriate for severe environments
Terminal box rotatable in 90 degrees

Specifications

Brand
WEG
Catalog Number
02018ET3E256T-S
Type
General Purpose Motor
HP
20
RPM
1800
Phase
3
Hertz
60
Frame
254/6T
Mounting
Foot-mount
Enclosure
TEFC
Voltage
230/460
Full Load Amps
24.7
Full Load Efficiency
92.4
Frame Material
Rolled Steel
Service Factor
1.15
"C" Dimensions
23.346
Number of Poles
2-6
Motor Efficiency Group
NEMA Premium Efficient
Warranty
1 Year

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
