WEG

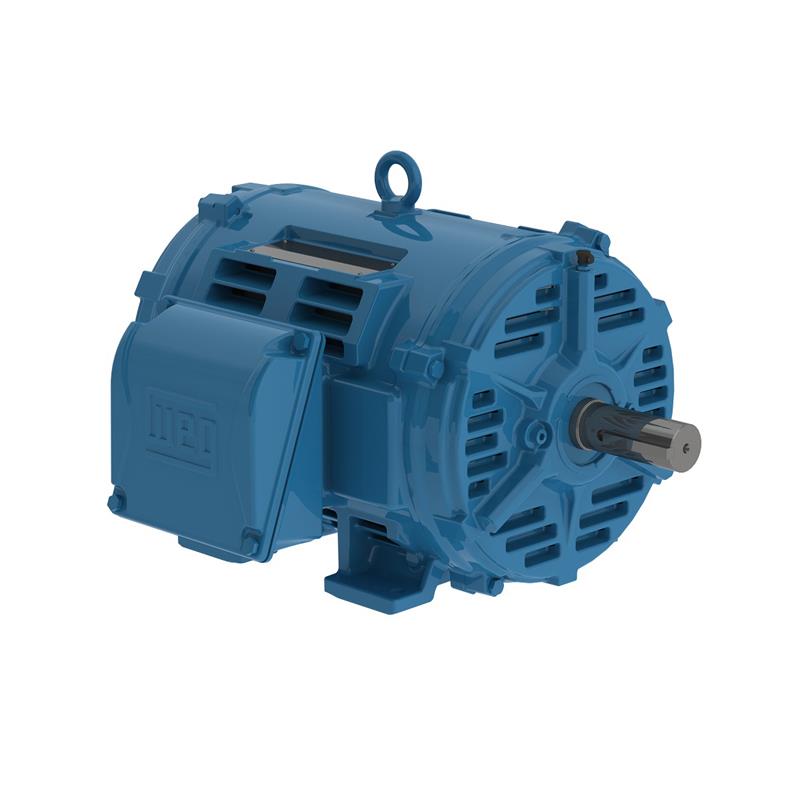

02012OT3E286T-W40 WEG Motor (20 HP, 286T FRAME, 208-230/460 V, THREE PHASE, ODP , 1180 RPM)

02012OT3E286T-W40 WEG Motor (20 HP, 286T FRAME, 208-230/460 V, THREE PHASE, ODP , 1180 RPM)

02012OT3E286T-W40

$2,358.43 USD
$2,358.43 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 02012OT3E286T, 20 HP, RPM: 1180, FRAME: 286T, 208-230/460 V, THREE PHASE: 60 Hz, : ODP, WEG General Purpose Motor

Applications
Pumps, fans, crushers, conveyors, machine tools, milling applications, centrifugal machines, presses, elevators, looms, grinders, woodworking, cooling, packaging equipment, other Severe Duty applications
Features
General Purpose Motor, 3-Phase, Rolled Steel or Cast Iron, NEMA Premium, ODP

Tech Specs

Brand
WEG Motors
Model Number
02012OT3E286T
HP
20 HP
RPM
1180
FRAME
286T
VOLTAGE
208-230/460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
ODP
APPROXIMATE WEIGHT (lb)
397
FEET
YES
TERMINAL BOX
LEFT
FLANGE
-
RATED CURRENT
53.1-48.0/24.0 A
LOCKED ROTOR CURRENT IL IN
7.1
LOCKED ROTOR CURRENT
341/170 A
LOCKED ROTOR TORQUE
2.7
BREAKDOWN TORQUE
2.7
EFFICIENCY 50
90.2
EFFICIENCY 75
91.7
EFFICIENCY 100
92.4
POWER FACTOR 50
0.7
POWER FACTOR 75
0.8
POWER FACTOR 100
0.85
SERVICE FACTOR
1.15
INERTIA KGM2
0.30338 kgm
INERTIA SQ FT
7.1992 sq.ft.
LOCKED ROTOR TIME
18 s
NOISE LEVEL
58 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP23
NO-LOAD CURRENT
21.0/10.5 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
119 Nm
FULL LOAD TORQUE FT
87.8 .ft
SLIP
0.0167
DESIGN
B
TEMPERATURE RISE
80 K
BEARINGS D E
6311 Z-C3
BEARINGS N D E
6211 Z-C3
REGREASING INTERVAL D E
20000 h
REGREASING INTERVAL N D E
20000 h
GREASE AMOUNT D E
18 g
GREASE AMOUNT N D E
11 g
