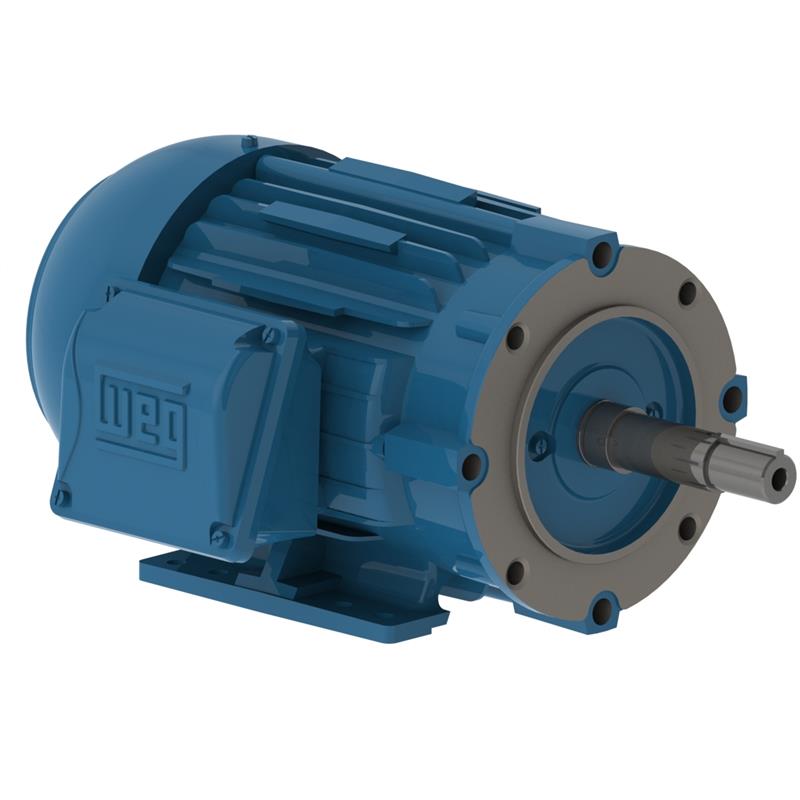

02012ET3E286JM-W22 WEG Motor, Close Coupled Pump (20 HP, 286JM FRAME, 460 V, THREE PHASE, TEFC , 1175 RPM)

02012ET3E286JM-W22 WEG Motor, Close Coupled Pump (20 HP, 286JM FRAME, 460 V, THREE PHASE, TEFC , 1175 RPM)

02012ET3E286JM-W22

$3,600.03 USD
$3,600.03 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 02012ET3E286JM-W22, 20 HP, RPM: 1175, FRAME: 286JM, 460 V, THREE PHASE: 60 Hz, : TEFC, WEG Close Coupled Pump Motor

Applications
Specially developed line for industrial and commercial pumping applications, such as Water pumping, Process, and Transfer and circulating pumps
Features
Close Coupled Pump Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC, JM & JP

Tech Specs

Brand
WEG Motors
Model Number
02012ET3E286JM-W22
HP
20 HP
RPM
1175
FRAME
286JM
VOLTAGE
460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
426
FEET
YES
TERMINAL BOX
LEFT
FLANGE
FC-279
RATED CURRENT
24.2 A
LOCKED ROTOR CURRENT IL IN
6.4
LOCKED ROTOR CURRENT
155 A
LOCKED ROTOR TORQUE
2.3
BREAKDOWN TORQUE
2.6
EFFICIENCY 50
91
EFFICIENCY 75
91.7
EFFICIENCY 100
91.7
POWER FACTOR 50
0.7
POWER FACTOR 75
0.8
POWER FACTOR 100
0.85
SERVICE FACTOR
1.25
INERTIA KGM2
0.38611 kgm
INERTIA SQ FT
9.1624 sq.ft.
LOCKED ROTOR TIME
16 s
NOISE LEVEL
59 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
9.50 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
120 Nm
FULL LOAD TORQUE FT
88.2 .ft
SLIP
0.0208
DESIGN
B
TEMPERATURE RISE
80 K
BEARINGS D E
6311 C3
BEARINGS N D E
6211 C3
REGREASING INTERVAL D E
20000 h
REGREASING INTERVAL N D E
20000 h
GREASE AMOUNT D E
18 g
GREASE AMOUNT N D E
11 g
