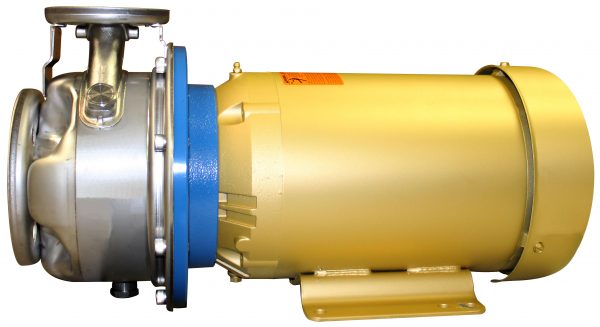

01SH08B10T3F2 Goulds e-SH Series Stainless Steel Centrifugal Pump (10 HP, 3 Phase, 1" Discharge, 2" Suction, 60 Hz, 230/460 Volt, TPE Enclosure, 7.67" Impeller, 144 GPM Max, 224' Max Head)

01SH08B10T3F2 Goulds e-SH Series Stainless Steel Centrifugal Pump (10 HP, 3 Phase, 60 Hz, 230/460 Volt, TPE Enclosure, 7.67" Impeller, 144 GPM Max, 224' Max Head).

The e-SH is a high performance stainless steel centrifugal end-suction pump suitable for handling water as well as non-aggressive or moderately aggressive fluids. The pump is equipped with interchangeable John Crane Type 21 mechanical seal, NEMA motor, and have a back pull-out design which means that impeller, bracket and motor can be extracted without disconnecting the pump body from the piping.

Features

• Compact design that saves space and simplifies maintenance
• Suction and discharge flanges mate with ANSI class 150 flanges
• Enclosed impeller and replaceable wear ring for high efficiency and maximum wear life

Applications

The e-SH is suitable for a wide range of non-aggressive to mildly aggressive fluids in commercial building, industrial & diverse OEM applications.

• Water intake
• Water transfer and circulation
• Pressure boosting
• Process cooling and heating
• Fluid transfer and transport
• Produced water transfer and boosting
• Boiler feed booster

Pumped Fluids

• Groundwater
• Potable water
• Process water
• Gray/used water
• Heat transfer fluids
• Produced water
