WEG

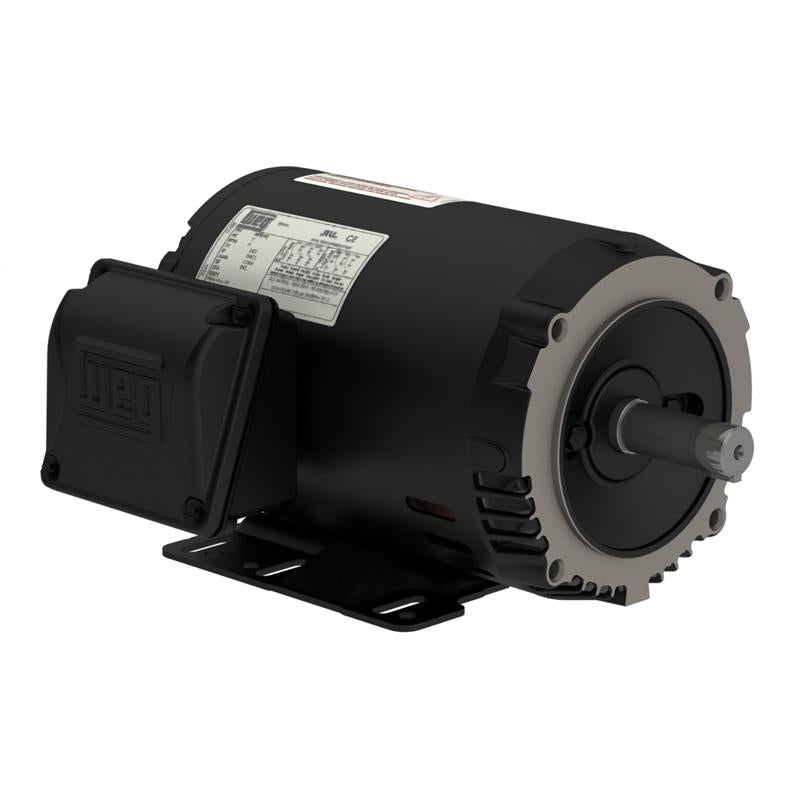

01536OT3V215TC-S WEG Motor (15 HP, 3600 RPM, 3 Phase, 213/5TC, ODP, 200/400 V, Foot Mount)
01536OT3V215TC-S WEG Motor (15 HP, 3600 RPM, 3 Phase, 213/5TC, ODP, 200/400 V, Foot Mount)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:01536OT3V215TC-S
Regular price
$1,373.27 USD
Regular price
$1,543.00 USD
Sale price
$1,373.27 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
WEG 01536OT3V215TC-S, 15 HP, 3600 RPM, 3 Phase, 213/5TC, ODP, 200/400 V, Foot Mount
| Applications | |
| WEG Open Drip Proof (ODP) motor is a general purpose line designed for environments where dirt and moisture are minimal. | |
| Features | |
| Number of poles: 2 through 6 | |
| Mounting: F-1 | |
| Efficiency levels: NEMA Premium | |
| Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V) | |
| Frame Sizes: NEMA 56 to 254/6T | |
| Foot mount / C-face / Footless availability | |
| Aluminum endshields | |
| Cast Iron flanges for improved strength | |
| New ventilation system for improved thermal performance | |
| Robust feet design suitable for tougher applications | |
| Terminal box rotatable in 90 degrees increments for flexibility during installation | |
Specifications | |
Brand |
WEG |
Catalog Number |
01536OT3V215TC-S |
Type |
General Purpose C-Face Motor |
HP |
15 |
RPM |
3600 |
Phase |
3 |
Frame |
213/5TC |
Enclosure |
ODP |
Voltage |
200/400 |
Full Load Amps |
19.8 |
Full Load Efficiency |
90.2 |
Frame Material |
Rolled Steel |
Service Factor |
1.15 |
"C" Dimensions |
17.756 |
Mounting |
Foot Mount |
Warranty |
1 Year |
Support Documents (pdf) | ||||
