WEG

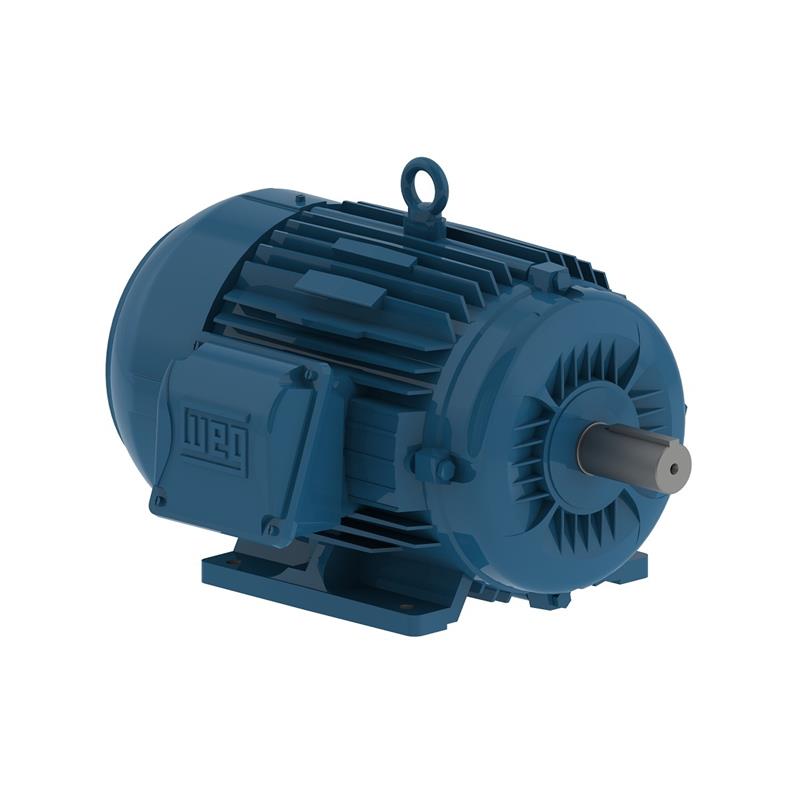

01536ET3H254T-W22 WEG Motor (15 HP, 254T FRAME, 575 V, THREE PHASE, TEFC , 3530 RPM)

01536ET3H254T-W22 WEG Motor (15 HP, 254T FRAME, 575 V, THREE PHASE, TEFC , 3530 RPM)

SKU:01536ET3H254T-W22

Regular price $1,329.24 USD
Regular price Sale price $1,329.24 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 01536ET3H254T-W22, 15 HP, RPM: 3530, FRAME: 254T, 575 V, THREE PHASE: 60 Hz, : TEFC, WEG General Purpose Motor

Applications
Chemical plants, Compressors, Pulp and paper mills, Crushers, Refineries, Pumps, Steel mills, Fans, Cement mills, Packaging equipment
Features
WEG General Purpose Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC

Tech Specs

Brand
WEG Motors
Model Number
01536ET3H254T-W22
HP
15 HP
RPM
3530
FRAME
254T
VOLTAGE
575 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
236
FEET
YES
TERMINAL BOX
LEFT
FLANGE
-
RATED CURRENT
13.8 A
LOCKED ROTOR CURRENT IL IN
6.8
LOCKED ROTOR CURRENT
93.6 A
LOCKED ROTOR TORQUE
2.2
BREAKDOWN TORQUE
2.7
EFFICIENCY 50
89.5
EFFICIENCY 75
91
EFFICIENCY 100
91
POWER FACTOR 50
0.77
POWER FACTOR 75
0.85
POWER FACTOR 100
0.88
SERVICE FACTOR
1.25
INERTIA KGM2
0.05295 kgm
INERTIA SQ FT LB
1.2565 sq.ft.
LOCKED ROTOR TIME
25 s
NOISE LEVEL
72 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
4.80 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
29.8 Nm
FULL LOAD TORQUE LB FT
22.0 .ft
SLIP
0.0194
DESIGN
B
TEMPERATURE RISE
80 K
BEARINGS D E
6309 C3
BEARINGS N D E
6209 C3
REGREASING INTERVAL D E
19000 h
REGREASING INTERVAL N D E
20000 h
GREASE AMOUNT D E
13 g
GREASE AMOUNT N D E
9 g
