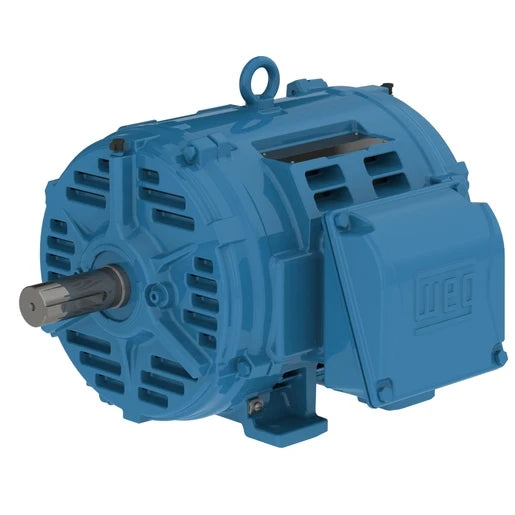

01518OT3E254TF2-W40 WEG General Purpose Motor (15 HP, 4P, 254T Frame, 3 Phase, 230/460 Volt, 60/50 Hz, IC01, ODP Enclosure, Foot Mounted)
01518OT3E254TF2-W40 WEG General Purpose Motor (15 HP, 4P, 254T Frame, 3 Phase, 230/460 Volt, 60/50 Hz, IC01, ODP Enclosure, Foot Mounted)
[COUNT] shoppers are looking at this right now
No reviews
SKU:01518OT3E254TF2-W40
Regular price
$1,295.21 USD
Regular price
$1,477.00 USD
Sale price
$1,295.21 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
01518OT3E254TF2-W40 WEG General Purpose Motor (15 HP, 4P, 254T Frame, 3 Phase, 230/460 Volt, 60/50 Hz, IC01, ODP Enclosure, Foot Mounted)
The W40 motor is a general purpose line designed for environments where dirt and moisture are minimal. The W40 cast iron frame is designed to provide maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness and durability.
| Frame | 254T |
|---|---|
| Output | 15 HP (11 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1775 rpm |
| Slip | 1.39 % |
| Rated voltage | 230/460 V |
| Rated current | 35.0/17.5 A |
| L. R. Amperes | 224/112 A |
| LRC | 6.4x(Code G) |
| No load current | 13.6/6.80 A |
| Rated torque | 44.4 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 260 % |
| Locked rotor time | 61s (cold) 34s (hot) |
