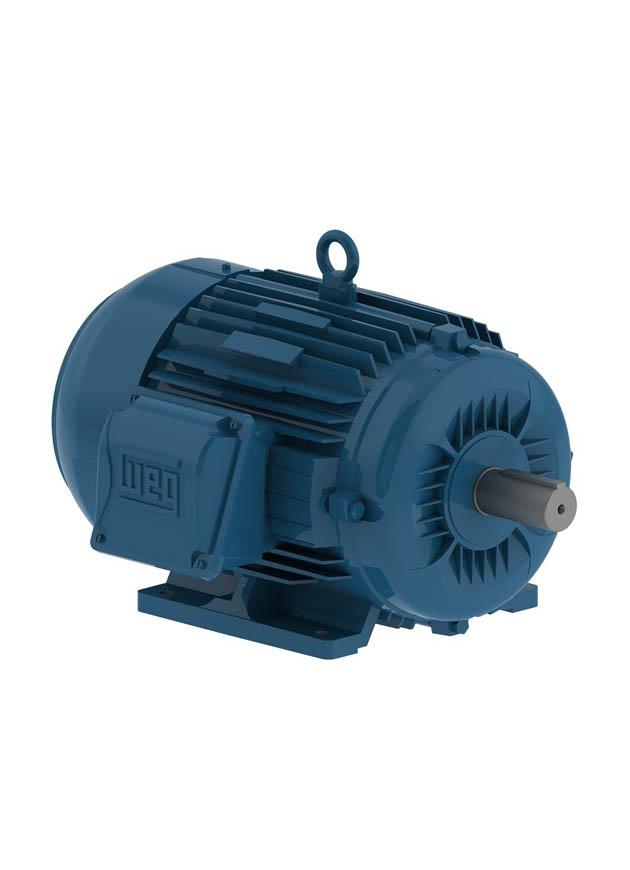

01518NT3FVD254TC-W22 WEG Motor (15 HP, 1800 RPM, 3 Phase, 254TC Frame, TENV Enclosure, 230/460 Voltage)
01518NT3FVD254TC-W22 WEG Motor (15 HP, 1800 RPM, 3 Phase, 254TC Frame, TENV Enclosure, 230/460 Voltage)
[COUNT] shoppers are looking at this right now
SKU:01518NT3FVD254TC-W22
Regular price
$2,284.63 USD
Regular price
$2,567.00 USD
Sale price
$2,284.63 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
WEG 01518NT3FVD254TC-W22, Series, 15 HP, 11 KW, 1800 RPM, 3 Phase, 254TC Frame, TENV Enclosure, Foot Mount Motor Mount, 230/460 Voltage
| Applications | |
| Designed specifically for inverter operation for applications requiring 1000:1 constant torque turndown ratio. | |
| Features | |
| Class F insulation (Impregnation Resin and Magnet wire are class H) | |
| NEMA design B. | |
| F1 Mounted (F2 convertible). | |
| Stainless Steel Nameplate - Laser etched with High contrast background | |
| Gasketed conduit box | |
|
Specifications |
|
|
Brand
|
WEG
|
|
Catalog Number
|
01518NT3FVD254TC-W22
|
|
Type
|
Severe Duty, Vector Duty Motor
|
|
HP
|
15
|
|
KW
|
11
|
|
RPM
|
1800
|
|
Phase
|
3
|
|
C-Dimentions
|
23.837
|
|
Service Factor
|
1
|
|
Frame
|
254TC
|
|
Enclosure
|
TENV
|
|
Full Load Amps
|
19.3
|
|
Motor Mount
|
Foot Mount
|
|
Voltage
|
230/460
|
|
Warranty
|
1 Year
|
|
