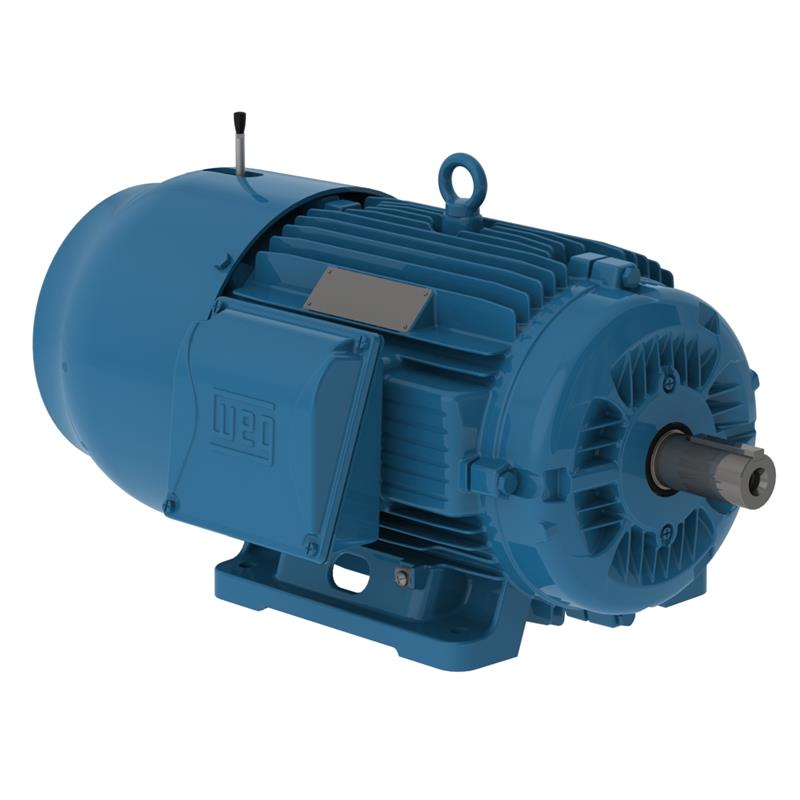

01518ET3HBM254T-W22 WEG Motor (15 HP, 1800 RPM, 3 Phase, 254/6T Frame, TEFC, 575 V, Foot Mount)

01518ET3HBM254T-W22 WEG Motor (15 HP, 1800 RPM, 3 Phase, 254/6T Frame, TEFC, 575 V, Foot Mount)

SKU:01518ET3HBM254T-W22

Regular price $3,793.15 USD
Regular price Sale price $3,793.15 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG 01518ET3HBM254T-W22, 15 HP, 1800 RPM, 3 Phase, 254/6T Frame, TEFC, 575 V, Foot Mount

Applications
WEG W22 brake motors consist of an induction motor coupled to a disc brake. Brake is of sturdy construction with few moving parts which guarantees long durability and minimum maintenance.
Features
Class F insulation (Impregnation Resin and
Magnet wire are class H)
F1 Mounted
Stainless Steel Nameplate - Laser etched with high contrast background
NPT Threaded terminal box
Armature type brake
Manual Release
Inverter Rated: 11000:1 for variable torque20:1 for constant torque
Regreasable ball bearings (Frames 254T and up)
Stainless Steel Nameplate - Laser etched with high contrast background

Specifications

Brand
WEG
Catalog Number
01518ET3HBM254T-W22
Type
Brake Motor
HP
15
RPM
1800
Phase
3
Frame
254/6T
Enclosure
TEFC
Voltage
575
FL Amps
14.4
FL Efficiency
92.4
Frame Material
Cast Iron
Service Factor
1.25
"C" Dimensions
29.839
Mounting
Foot Mount
Item Condition
Factory New
Warranty
1 Year
