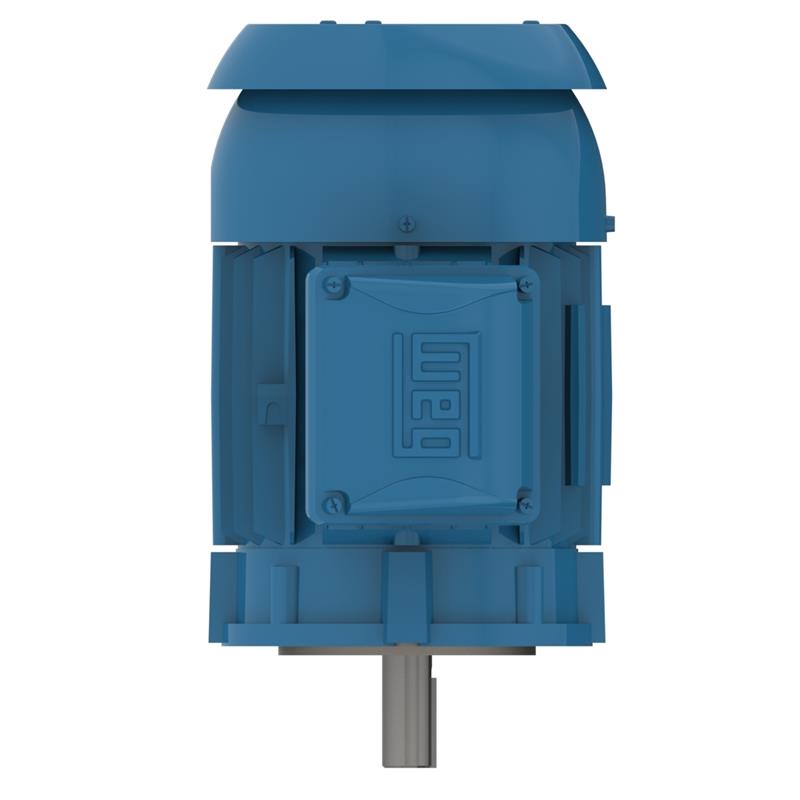

01518ET3ER254TC-W22 WEG Motor (15 HP, 1800 RPM, 3 Phase, 60Hz, 254TC Frame, 230/460V, TEFC, Footless)
01518ET3ER254TC-W22 WEG Motor (15 HP, 1800 RPM, 3 Phase, 60Hz, 254TC Frame, 230/460V, TEFC, Footless)
SKU:01518ET3ER254TC-W22
Regular price
$1,439.29 USD
Regular price
Sale price
$1,439.29 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG 01518ET3ER254TC-W22, 15 HP, 1800 RPM, 3 Phase, 60Hz, 254TC Frame, 230/460V, TEFC, Footless
| Applications | |
| General Purpose Motor | |
| Features | |
| F1 mounted (cast iron frames are F2 convertible). Frames 447T and up can easily be F2 converted by simply rotating the terminal box adapter. | |
| Class F insulation | |
| Efficiency levels: High Efficiency (EPAct) and NEMA Premium | |
| IP55 standard, IP56 optional | |
| F1 mount as standard | |
| Aluminum endshields | |
| Cast Iron flanges for improved strength (182/4TC and larger) | |
| Internal bolts, giving a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load if required | |
| Double shielded ball bearings on frames 56 to 213/5T. Optional double sealed ball bearings and/or bearing cap | |
Specifications | |
Brand |
WEG |
Catalog Number |
01518ET3ER254TC-W22 |
Type |
General Purpose Motor |
HP |
15 |
RPM |
1800 |
Phase |
3 |
Frequency |
60Hz |
Frame |
254TC |
Voltage |
230/460 |
Enclosure |
TEFC |
Mounting |
Footless |
FL Efficiency |
92.4 |
FL Amps |
18 |
Construction |
Cast Iron |
Service Factor |
1.25 |
"C" Dimensions |
25.063 |
Drive End Flange Type |
C-Face |
Warranty |
1 Year |
