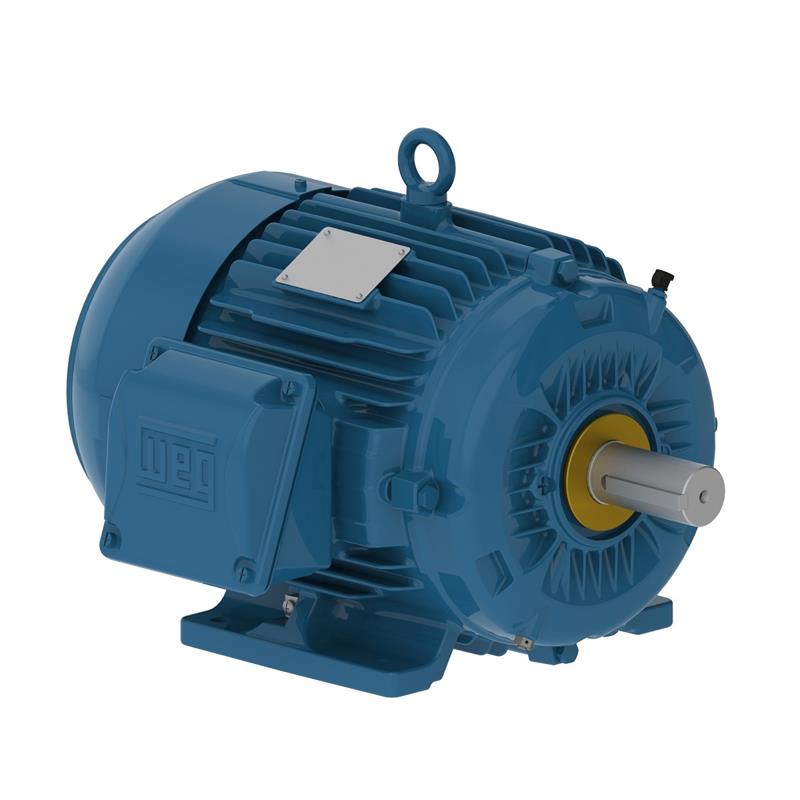

01509ST3QIE286T-W22 WEG Motor (15 HP, 286T FRAME, 460 V, THREE PHASE, TEFC , 880 RPM)

01509ST3QIE286T-W22 WEG Motor (15 HP, 286T FRAME, 460 V, THREE PHASE, TEFC , 880 RPM)

01509ST3QIE286T-W22

$4,913.24 USD
$4,913.24 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 01509ST3QIE286T-W22, 15 HP, RPM: 880, FRAME: 286T, 460 V, THREE PHASE: 60 Hz, : TEFC, WEG Motor

Applications
Pumping applications, Pulp and paper mills, ical, Other
Features
IEEE 841 Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC

Tech Specs

Brand
WEG Motors
Model Number
01509ST3QIE286T-W22
HP
15 HP
RPM
880
FRAME
286T
VOLTAGE
460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT LB
417
FEET
YES
TERMINAL BOX
LEFT
FLANGE
-
RATED CURRENT
19.4 A
LOCKED ROTOR CURRENT IL IN
5.5
LOCKED ROTOR CURRENT
107 A
LOCKED ROTOR TORQUE
2
BREAKDOWN TORQUE
2.3
EFFICIENCY 50
90.2
EFFICIENCY 75
91
EFFICIENCY 100
90.2
POWER FACTOR 50
0.62
POWER FACTOR 75
0.73
POWER FACTOR 100
0.79
SERVICE FACTOR
1.25
INERTIA KGM2
0.34475 kgm
INERTIA SQ FT LB
8.1809 sq.ft.
LOCKED ROTOR TIME
25 s
NOISE LEVEL
54 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
9.00 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
120 Nm
FULL LOAD TORQUE LB FT
88.3 .ft
SLIP
0.0222
DESIGN
B
TEMPERATURE RISE
80 K
BEARINGS D E
6311 C3
BEARINGS N D E
6211 C3
REGREASING INTERVAL D E
20000 h
REGREASING INTERVAL N D E
20000 h
GREASE AMOUNT D E
18 g
GREASE AMOUNT N D E
11 g
-
-
