WEG

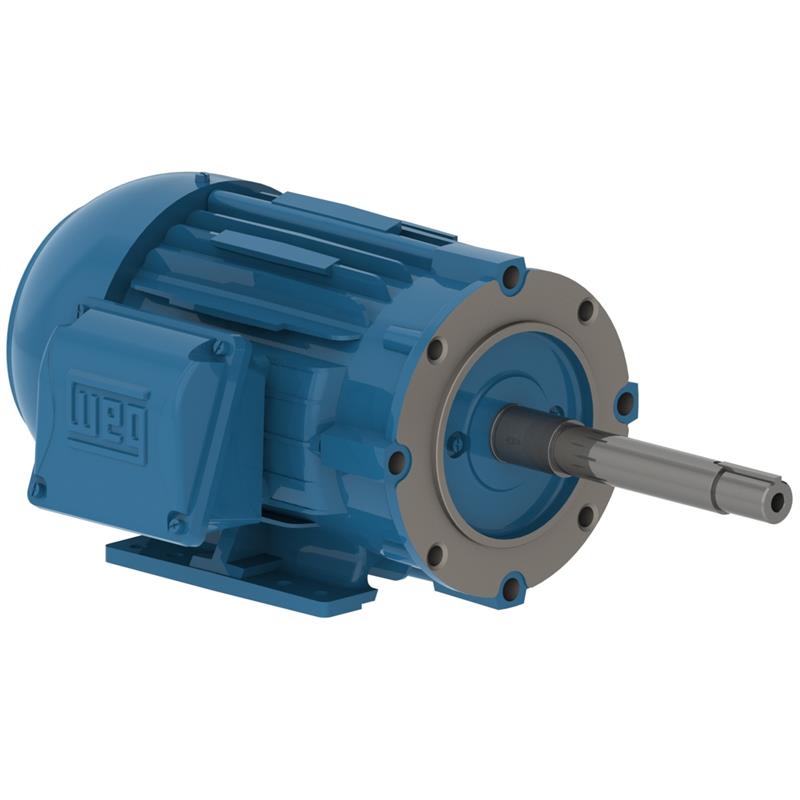

01036ET3E215JP-W22 WEG Motor, Close Coupled Pump (10 HP, 215JP FRAME, 460 V, THREE PHASE, TEFC , 3515 RPM)

01036ET3E215JP-W22 WEG Motor, Close Coupled Pump (10 HP, 215JP FRAME, 460 V, THREE PHASE, TEFC , 3515 RPM)

01036ET3E215JP-W22

$1,312.48 USD
$1,312.48 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 01036ET3E215JP-W22, 10 HP, RPM: 3515, FRAME: 215JP, 460 V, THREE PHASE: 60 Hz, : TEFC, WEG Close Coupled Pump Motor

Applications
Specially developed line for industrial and commercial pumping applications, such as Water pumping, Process, and Transfer and circulating pumps
Features
Close Coupled Pump Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC, JM & JP

Tech Specs

Brand
WEG Motors
Model Number
01036ET3E215JP-W22
HP
10 HP
RPM
3515
FRAME
215JP
VOLTAGE
460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
163
FEET
YES
TERMINAL BOX
LEFT
FLANGE
FC-184
RATED CURRENT
11.6 A
LOCKED ROTOR CURRENT IL IN
7.2
LOCKED ROTOR CURRENT
83.5 A
LOCKED ROTOR TORQUE
2.1
BREAKDOWN TORQUE
2.9
EFFICIENCY 50
89.5
EFFICIENCY 75
90.2
EFFICIENCY 100
90.2
POWER FACTOR 50
0.79
POWER FACTOR 75
0.87
POWER FACTOR 100
0.9
SERVICE FACTOR
1.25
INERTIA KGM2
0.02681 kgm
INERTIA SQ FT LB
0.63620 sq.ft.
LOCKED ROTOR TIME
24 s
NOISE LEVEL
72 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
3.70 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
20.0 Nm
FULL LOAD TORQUE LB FT
14.7 .ft
SLIP
0.0236
DESIGN
B
TEMPERATURE RISE
80 K
BEARINGS D E
6309 Z-C3
BEARINGS N D E
6207 ZZ
REGREASING INTERVAL D E
19000 h
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
13 g
GREASE AMOUNT N D E
-

View full details
