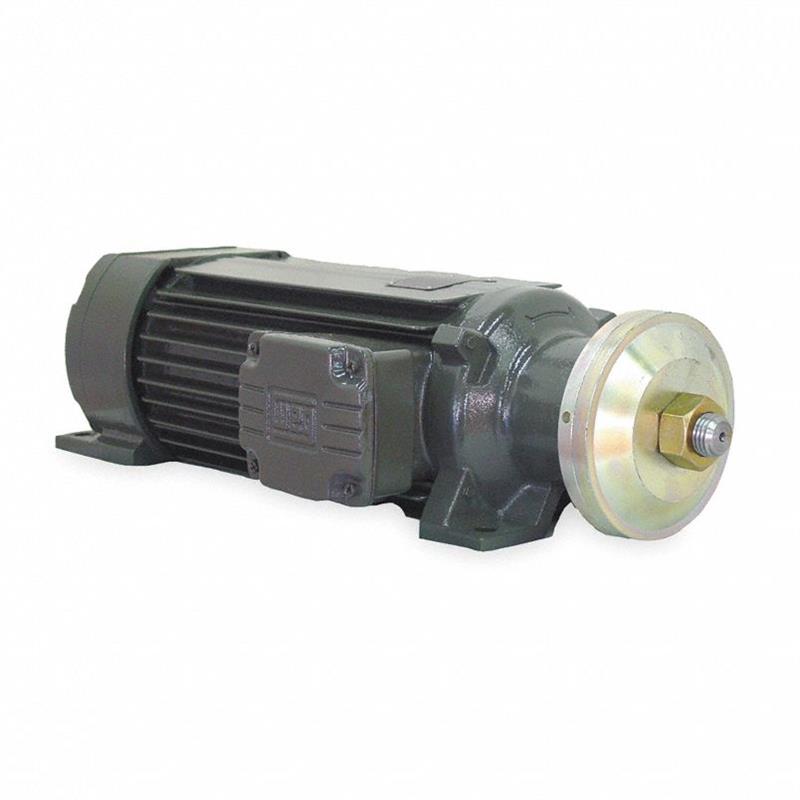

01036ES3ESA90LR WEG Motor, Saw Arbor (10 HP, 90L FRAME, 208-230/460 V, THREE PHASE, TEFC , 3480 RPM)

01036ES3ESA90LR WEG Motor, Saw Arbor (10 HP, 90L FRAME, 208-230/460 V, THREE PHASE, TEFC , 3480 RPM)

SKU:01036ES3ESA90LR

Regular price $1,423.25 USD
Regular price Sale price $1,423.25 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 01036ES3ESA90LR, 10 HP , 3480 RPM, 90L FRAME, 208-230/460 V , THREE PHASE, 60 Hz , TEFC , Saw Arbor Motor
Applications
Circular saws, Pendulum saws, Grinding machines, Polishing machines
Features
Saw Arbor Motors, 3-Phase, Cast Iron, Standard Efficiency, TEFC

Tech Specs

Brand
WEG Motors
Model Number
01036ES3ESA90LR
HP
10 HP
RPM
3480
FRAME
90L
VOLTAGE
208-230/460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
166
FEET
YES
TERMINAL BOX
RIGHT
FLANGE
-
RATED CURRENT
27.2-24.6/12.3 A
LOCKED ROTOR CURRENT IL IN
8.5
LOCKED ROTOR CURRENT
209/104 A
LOCKED ROTOR TORQUE
4
BREAKDOWN TORQUE
4.2
EFFICIENCY 50
82
EFFICIENCY 75
84.5
EFFICIENCY 100
85
POWER FACTOR 50
0.77
POWER FACTOR 75
0.86
POWER FACTOR 100
0.9
SERVICE FACTOR
1.15
INERTIA KGM2
0.01400 kgm
INERTIA SQ FT
0.33222 sq.ft.
LOCKED ROTOR TIME
7 s
NOISE LEVEL
68 dB(A)
ALTITUDE
1000
DUTY CYCLE
S6 50%
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP54
NO-LOAD CURRENT
8.99/4.50 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
20.2 Nm
FULL LOAD TORQUE FT
14.9 .ft
SLIP
0.0333
DESIGN
N
TEMPERATURE RISE
80 K
BEARINGS D E
6308 ZZ
BEARINGS N D E
6208 ZZ
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
