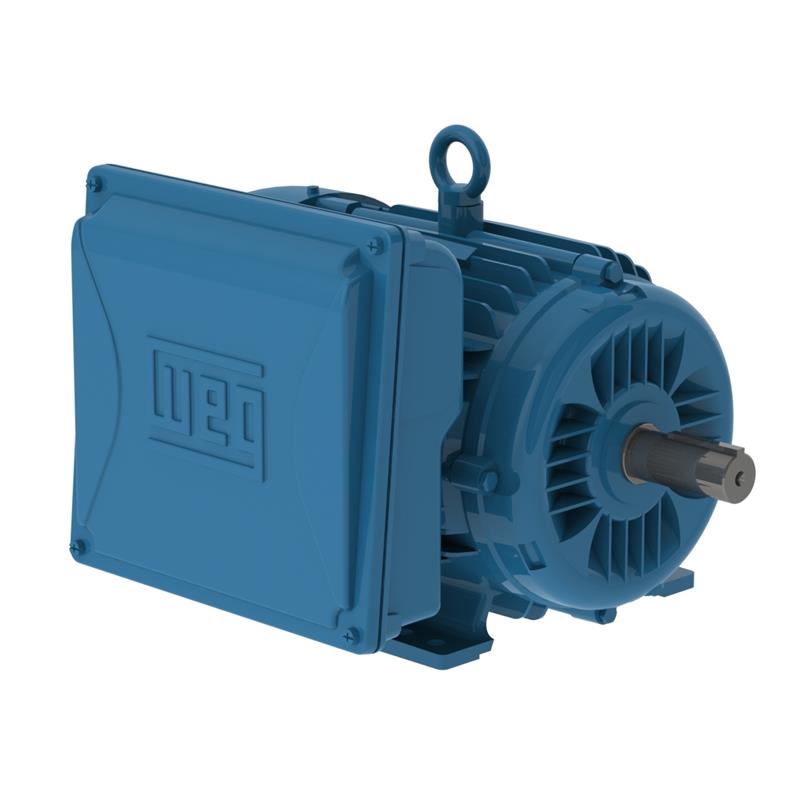

01036ES1E215T-W22 WEG Motor (10 HP, 215T FRAME, 208-230/460 V, SINGLE PHASE, TEFC , 3510 RPM)

01036ES1E215T-W22 WEG Motor (10 HP, 215T FRAME, 208-230/460 V, SINGLE PHASE, TEFC , 3510 RPM)

[COUNT] shoppers are looking at this right now

01036ES1E215T-W22

$1,705.24 USD
$1,916.00 USD $1,705.24 USD
Sale Sold out
Shipping calculated at checkout.

WEG Motor 01036ES1E215T, 10 HP, RPM: 3510, FRAME: 215T, 208-230/460 V, SINGLE PHASE: 60 Hz, : TEFC, WEG General Purpose Motor
Applications
Pumps, fans, crushers, conveyors, machine tools, milling applications, centrifugal machines, presses, elevators, looms, grinders, woodworking, cooling, packaging equipment, other Severe Duty applications
Features
WEG General Purpose Single Phase Cast Iron Motor, Standard, TEFC

Tech Specs

Brand
WEG Motors
Model Number
01036ES1E215T
HP
10 HP
RPM
3510
FRAME
215T
VOLTAGE
208-230/460 V
PHASE
SINGLE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
158
FEET
YES
TERMINAL BOX
LEFT
FLANGE
-
RATED CURRENT
43.2-38.8/19.4 A
LOCKED ROTOR CURRENT IL IN
6.8
LOCKED ROTOR CURRENT
264/132 A
LOCKED ROTOR TORQUE
2.2
BREAKDOWN TORQUE
2.7
EFFICIENCY 50
83
EFFICIENCY 75
85
EFFICIENCY 100
86
POWER FACTOR 50
0.91
POWER FACTOR 75
0.94
POWER FACTOR 100
0.95
SERVICE FACTOR
1.15
INERTIA KGM2
0.02227 kgm
INERTIA SQ FT
0.52847 sq.ft.
LOCKED ROTOR TIME
6 s
NOISE LEVEL
-
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
8.20/4.10 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
20.0 Nm
FULL LOAD TORQUE FT
14.8 .ft
SLIP
0.025
DESIGN
-
TEMPERATURE RISE
80 K
BEARINGS D E
6308 ZZ
BEARINGS N D E
6206 ZZ
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
