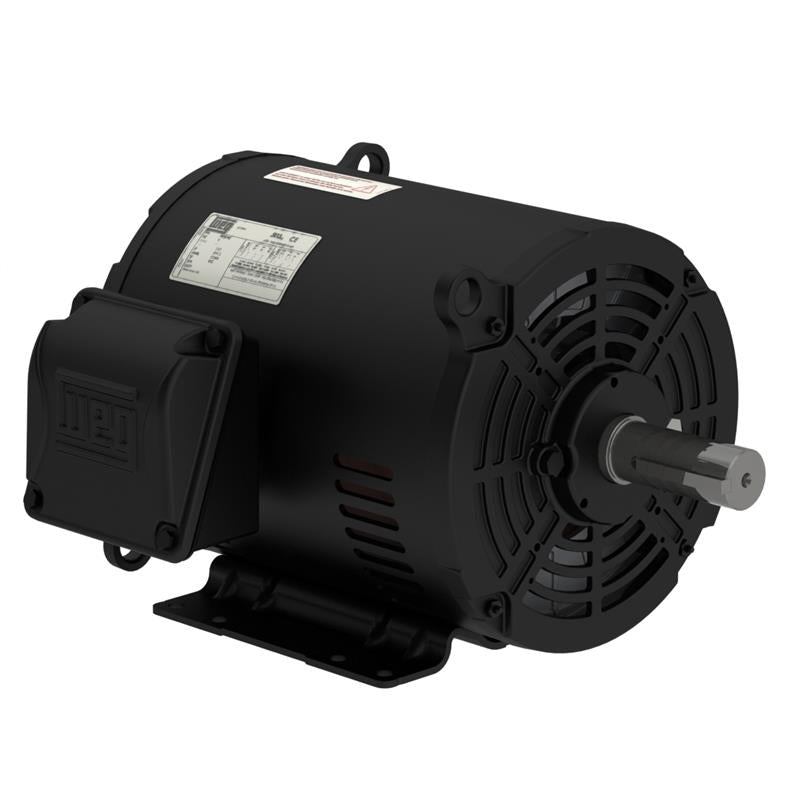

01018OT3ECD215T-S WEG Compressor Duty Motor (10 HP, 1800 RPM, 3 Phase, 215T Frame, 208-230/460 Voltage, ODP Enclosure)
01018OT3ECD215T-S WEG Compressor Duty Motor (10 HP, 1800 RPM, 3 Phase, 215T Frame, 208-230/460 Voltage, ODP Enclosure)
SKU:01018OT3ECD215T-S
Regular price
$803.09 USD
Regular price
Sale price
$803.09 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG 01018OT3ECD215T-S, Compressor Duty Motors Series, 10 HP, 7.5 KW, 1800 RPM, 3 Phase, 215T Frame, 208-230/460 Voltage, ODP Enclosure
| Applications | |
| These high quality motors are designed to meet the high torque requirements of air compressor loads. Special electrical and mechanical design guarantee reliable service and longer motor life. | |
| Features | |
| Single-Phase: Class B insulation; Start Capacitor; Ball bearings; Manual Reset Thermal Overload Protection; High starting torque; and Rolled Steel frames have base seam welded to the frame for heavy duty use. | |
| Three-Phase: Class F insulation (Impregnation Resin and Magnet wire are class H); Class B Rise at 1.15 Service Factor; F1 Mounted (Cast Iron Frame motors are F2 convertible); Stainless Steel Nameplate - Laser etched with high contrast background. | |
Specifications | |
Brand |
WEG |
Catalog Number |
01018OT3ECD215T-S |
Type |
Definite Purpose Motors |
Series |
Compressor Duty Motors |
HP |
10 |
KW |
7.5 |
RPM |
1800 |
Phase |
3 |
Service Factor |
1.15 |
Frame |
215T |
Voltage |
208-230/460 |
Enclosure |
ODP |
Mount |
Foot Mount |
Full Load Amps |
12.2 |
Warranty |
1 Year |
