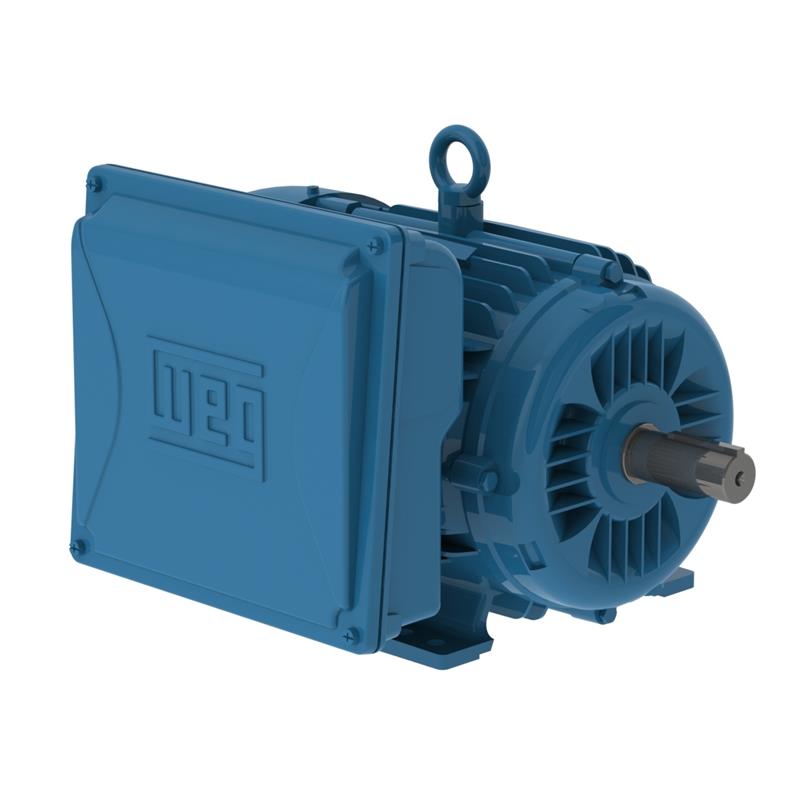

01018ES1E215T-W22 WEG Motor (10 HP, 215T FRAME, 208-230/460 V, SINGLE PHASE, TEFC , 1730 RPM)
01018ES1E215T-W22 WEG Motor (10 HP, 215T FRAME, 208-230/460 V, SINGLE PHASE, TEFC , 1730 RPM)
SKU:01018ES1E215T-W22
Regular price
$1,150.70 USD
Regular price
Sale price
$1,150.70 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG Motor 01018ES1E215T, 10 HP, RPM: 1730, FRAME: 215T, 208-230/460 V, SINGLE PHASE: 60 Hz, : TEFC, WEG General Purpose Motor
| Applications |
| Pumps, fans, crushers, conveyors, machine tools, milling applications, centrifugal machines, presses, elevators, looms, grinders, woodworking, cooling, packaging equipment, other Severe Duty applications |
| Features |
| WEG General Purpose Single Phase Cast Iron Motor, Standard, TEFC |
Tech Specs | |
Brand |
WEG Motors |
Model Number |
01018ES1E215T |
HP |
10 HP |
RPM |
1730 |
FRAME |
215T |
VOLTAGE |
208-230/460 V |
PHASE |
SINGLE |
FREQUENCY |
60 Hz |
ENCLOSURE |
TEFC |
APPROXIMATE WEIGHT (lb) |
181 |
FEET |
YES |
TERMINAL BOX |
LEFT |
FLANGE |
- |
RATED CURRENT |
44.8-39.0/19.5 A |
LOCKED ROTOR CURRENT IL IN |
6.7 |
LOCKED ROTOR CURRENT |
261/131 A |
LOCKED ROTOR TORQUE |
2.8 |
BREAKDOWN TORQUE |
2.1 |
EFFICIENCY 50 |
80 |
EFFICIENCY 75 |
83.5 |
EFFICIENCY 100 |
84 |
POWER FACTOR 50 |
0.94 |
POWER FACTOR 75 |
0.96 |
POWER FACTOR 100 |
0.97 |
SERVICE FACTOR |
1.15 |
INERTIA KGM2 |
0.04860 kgm |
INERTIA SQ FT |
1.1533 sq.ft. |
LOCKED ROTOR TIME |
6 s |
NOISE LEVEL |
- |
ALTITUDE |
1000 |
DUTY CYCLE |
S1 |
AMBIENT TEMPERATURE |
-20C - +40C |
DEGREE OF PROTECTION |
IP55 |
NO-LOAD CURRENT |
6.00/3.00 A |
INSULATION CLASS |
F |
FULL LOAD TORQUE NM |
40.6 Nm |
FULL LOAD TORQUE FT |
29.9 .ft |
SLIP |
0.0389 |
DESIGN |
- |
TEMPERATURE RISE |
80 K |
BEARINGS D E |
6308 ZZ |
BEARINGS N D E |
6206 ZZ |
REGREASING INTERVAL D E |
- |
REGREASING INTERVAL N D E |
- |
GREASE AMOUNT D E |
- |
GREASE AMOUNT N D E |
- |
