WEG

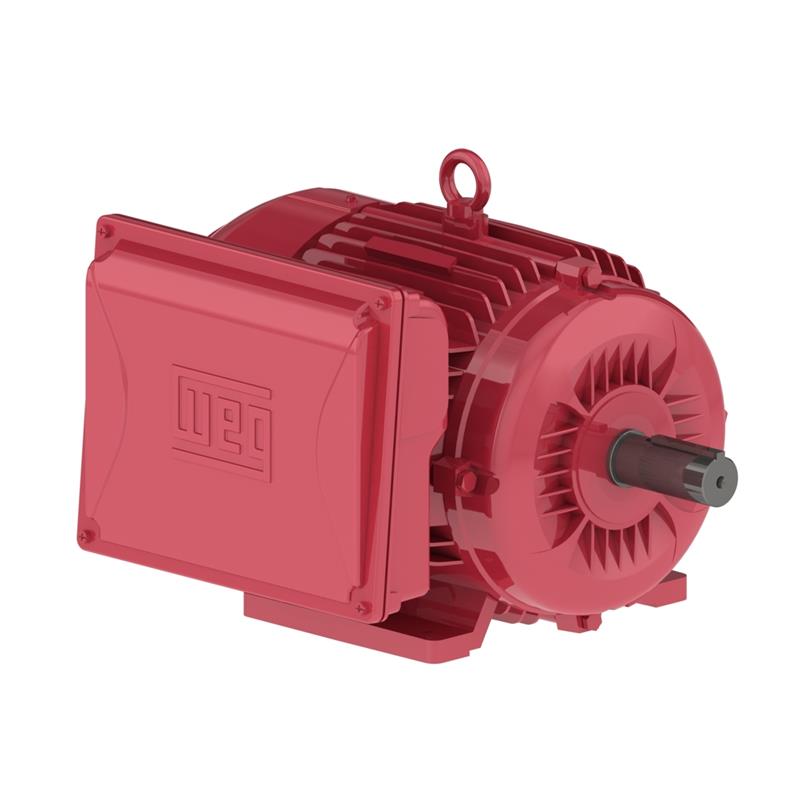

01018ES1DFD215T-W22 WEG Motor, Farm Duty (10 HP, 215T FRAME, 230 V, SINGLE PHASE, TEFC , 1720 RPM)

01018ES1DFD215T-W22 WEG Motor, Farm Duty (10 HP, 215T FRAME, 230 V, SINGLE PHASE, TEFC , 1720 RPM)

SKU:01018ES1DFD215T-W22

Regular price $1,233.05 USD
Regular price Sale price $1,233.05 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 01018ES1DFD215T-W22, 10 HP, RPM: 1720, FRAME: 215T, 230 V, SINGLE PHASE: 60 Hz, : TEFC, WEG Farm Duty Motor
Applications
Pumps, Fans, Conveyors, Poultry equipment, Air compressors, Other farm machinery
Features
Farm Duty Motor, Single Phase, Rolled Steel or Cast Iron, Standard Efficiency, TEFC

Tech Specs

Brand
WEG Motors
Model Number
01018ES1DFD215T-W22
HP
10 HP
RPM
1720
FRAME
215T
VOLTAGE
230 V
PHASE
SINGLE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
176
FEET
YES
TERMINAL BOX
LEFT
FLANGE
-
RATED CURRENT
40.0 A
LOCKED ROTOR CURRENT IL IN
6.2
LOCKED ROTOR CURRENT
248 A
LOCKED ROTOR TORQUE
2.8
BREAKDOWN TORQUE
2.1
EFFICIENCY 50
80
EFFICIENCY 75
82.5
EFFICIENCY 100
83
POWER FACTOR 50
0.92
POWER FACTOR 75
0.95
POWER FACTOR 100
0.96
SERVICE FACTOR
1.15
INERTIA KGM2
0.04860 kgm
INERTIA SQ FT
1.1533 sq.ft.
LOCKED ROTOR TIME
6 s
NOISE LEVEL
-
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
6.00 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
40.8 Nm
FULL LOAD TORQUE FT
30.1 .ft
SLIP
0.0444
DESIGN
-
TEMPERATURE RISE
80 K
BEARINGS D E
6308 ZZ
BEARINGS N D E
6206 ZZ
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
