WEG

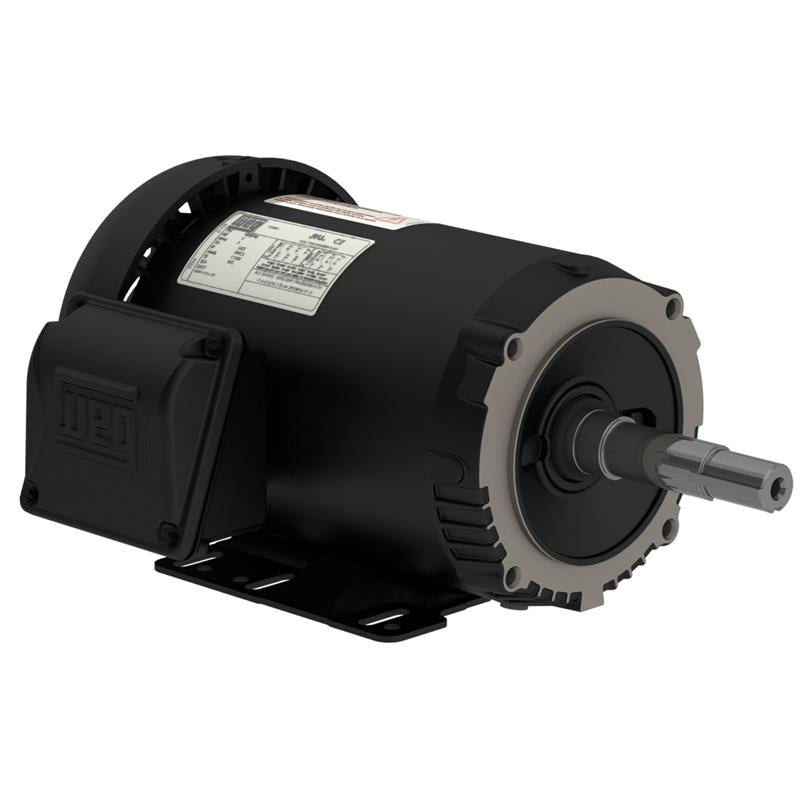

00736ET3E184JM-S WEG Close Coupled Pump Motor (7 .5 HP, 3 Phase, 230/460 Voltage, TEFC Enclosure, 3600 RPM, 182/4JM Frame)
00736ET3E184JM-S WEG Close Coupled Pump Motor (7 .5 HP, 3 Phase, 230/460 Voltage, TEFC Enclosure, 3600 RPM, 182/4JM Frame)
SKU:00736ET3E184JM-S
Regular price
$956.85 USD
Regular price
Sale price
$956.85 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG 00736ET3E184JM-S, Close-Coupled Pump Motors Type, 7 .5 HP, 3 Phase, 230/460 Voltage, TEFC Enclosure, 3600 RPM, 182/4JM Frame,
| Applications | |
| High performance with maximum energy efficiency, this is the meaning of the new WEG electric motor. High efficiency and Low cost of Ownership throughout the entire motor lifetime have been the basis for the W22 development. A design created to anticipate concepts on performance and energy savings. | |
| Features | |
| Class F insulation (Impregnation Resin and Magnet wire are class H) | |
| Regreasable ball bearings (Frames 254JM/JP and up) | |
| Gasketed conduit box | |
| Optimized ventilation system for cooler operation and reduced noise levels | |
| Solid base for reduced vibration levels | |
Specifications | |
Brand |
WEG |
Catalog Number |
00736ET3E184JM-S |
Type |
Close-Coupled Pump Motors |
HP |
7 .5 |
Phase |
3 |
Voltage |
230/460 |
Enclosure |
TEFC |
RPM |
3600 |
Service Factor |
1 .15 |
Frame |
182/4JM |
FL Amps @ High |
8 .60 |
FL. Eff (%) |
89 .5 |
C Dimension (in) |
18 .622 |
Notes |
See Support Documents |
Support Documents (pdf) |
