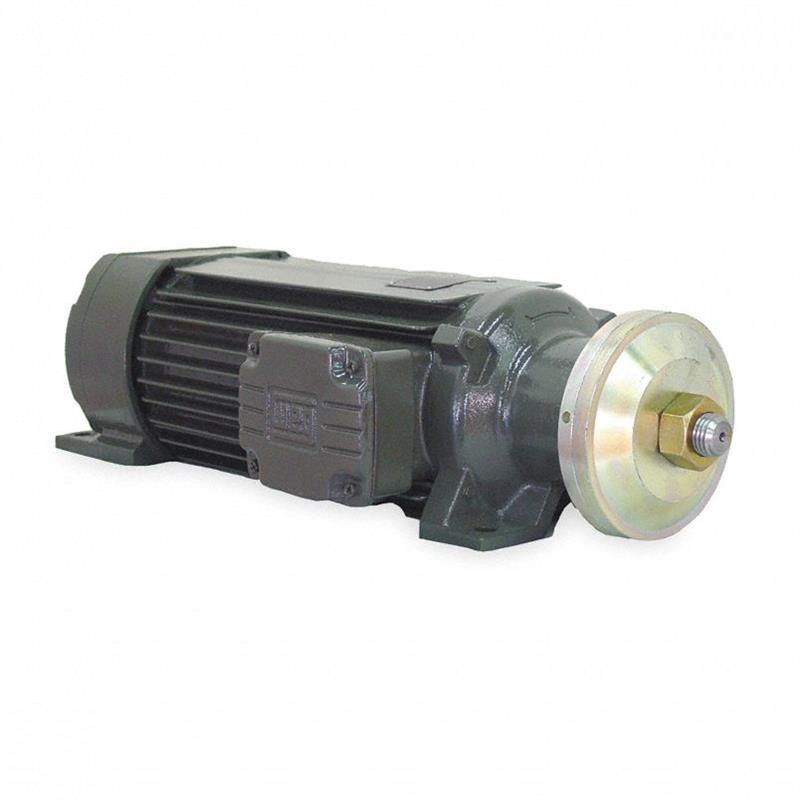

00736ES3HSA80LR WEG Motor, Saw Arbor (7.5 HP, 80L FRAME, 575 V, THREE PHASE, TEFC , 3490 RPM)

00736ES3HSA80LR WEG Motor, Saw Arbor (7.5 HP, 80L FRAME, 575 V, THREE PHASE, TEFC , 3490 RPM)

00736ES3HSA80LR

$1,196.61 USD
$1,196.61 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 00736ES3HSA80LR, 7.5 HP , 3490 RPM, 80L FRAME, 575 V , THREE PHASE, 60 Hz , TEFC , Saw Arbor Motor
Applications
Circular saws, Pendulum saws, Grinding machines, Polishing machines
Features
Saw Arbor Motors, 3-Phase, Cast Iron, Standard Efficiency, TEFC

Tech Specs

Brand
WEG Motors
Model Number
00736ES3HSA80LR
HP
7.5 HP
RPM
3490
FRAME
80L
VOLTAGE
575 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
120
FEET
YES
TERMINAL BOX
RIGHT
FLANGE
-
RATED CURRENT
7.81 A
LOCKED ROTOR CURRENT IL IN
9.2
LOCKED ROTOR CURRENT
71.8 A
LOCKED ROTOR TORQUE
4
BREAKDOWN TORQUE
4.6
EFFICIENCY 50
85.2
EFFICIENCY 75
87
EFFICIENCY 100
87.4
POWER FACTOR 50
0.64
POWER FACTOR 75
0.75
POWER FACTOR 100
0.81
SERVICE FACTOR
1.15
INERTIA KGM2
0.00605 kgm
INERTIA SQ FT
0.14357 sq.ft.
LOCKED ROTOR TIME
5 s
NOISE LEVEL
62 dB(A)
ALTITUDE
1000
DUTY CYCLE
S6 50%
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP54
NO-LOAD CURRENT
3.52 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
15.1 Nm
FULL LOAD TORQUE FT
11.1 .ft
SLIP
0.0306
DESIGN
N
TEMPERATURE RISE
80 K
BEARINGS D E
6307 ZZ
BEARINGS N D E
6207 ZZ
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
