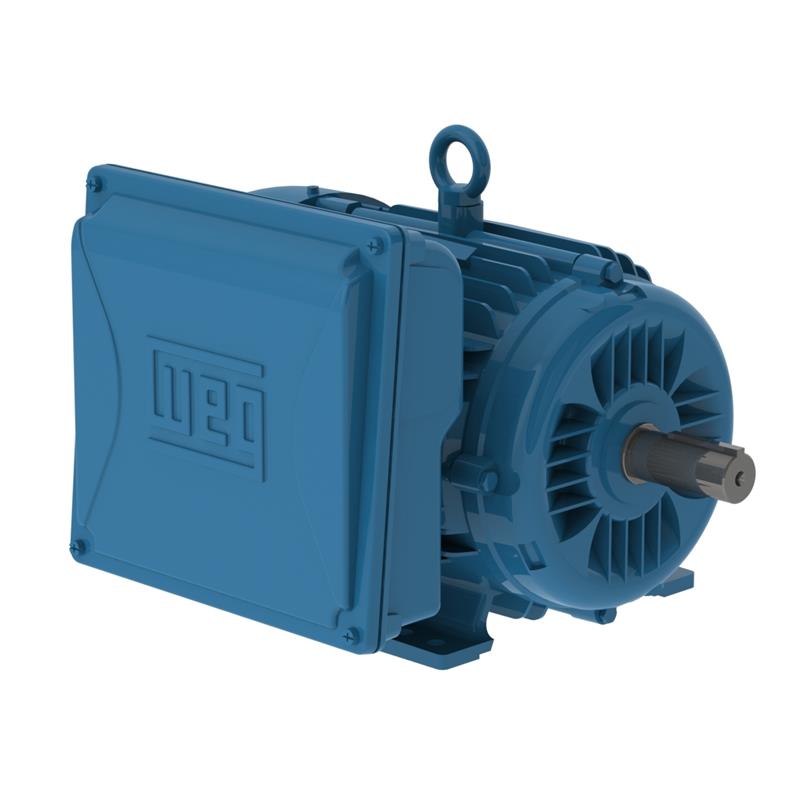

00736ES1E213T-W22 WEG Motor (7.5 HP, 213T FRAME, 230 V, SINGLE PHASE, TEFC , 3515 RPM)

00736ES1E213T-W22 WEG Motor (7.5 HP, 213T FRAME, 230 V, SINGLE PHASE, TEFC , 3515 RPM)

00736ES1E213T-W22

$1,128.10 USD
$1,128.10 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 00736ES1E213T, 7.5 HP, RPM: 3515, FRAME: 213T, 230 V, SINGLE PHASE: 60 Hz, : TEFC, WEG General Purpose Motor
Applications
Pumps, fans, crushers, conveyors, machine tools, milling applications, centrifugal machines, presses, elevators, looms, grinders, woodworking, cooling, packaging equipment, other Severe Duty applications
Features
WEG General Purpose Single Phase Cast Iron Motor, Standard, TEFC

Tech Specs

Brand
WEG Motors
Model Number
00736ES1E213T
HP
7.5 HP
RPM
3515
FRAME
213T
VOLTAGE
230 V
PHASE
SINGLE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
142
FEET
YES
TERMINAL BOX
LEFT
FLANGE
-
RATED CURRENT
33.4-29.8/14.9 A
LOCKED ROTOR CURRENT IL IN
7.6
LOCKED ROTOR CURRENT
226/113 A
LOCKED ROTOR TORQUE
1.8
BREAKDOWN TORQUE
2.7
EFFICIENCY 50
83
EFFICIENCY 75
85
EFFICIENCY 100
86
POWER FACTOR 50
0.88
POWER FACTOR 75
0.93
POWER FACTOR 100
0.94
SERVICE FACTOR
1.15
INERTIA KGM2
0.02049 kgm
INERTIA SQ FT
0.48623 sq.ft.
LOCKED ROTOR TIME
6 s
NOISE LEVEL
-
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
7.80/3.90 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
15.0 Nm
FULL LOAD TORQUE FT
11.1 .ft
SLIP
0.0236
DESIGN
-
TEMPERATURE RISE
80 K
BEARINGS D E
6308 ZZ
BEARINGS N D E
6206 ZZ
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
