WEG

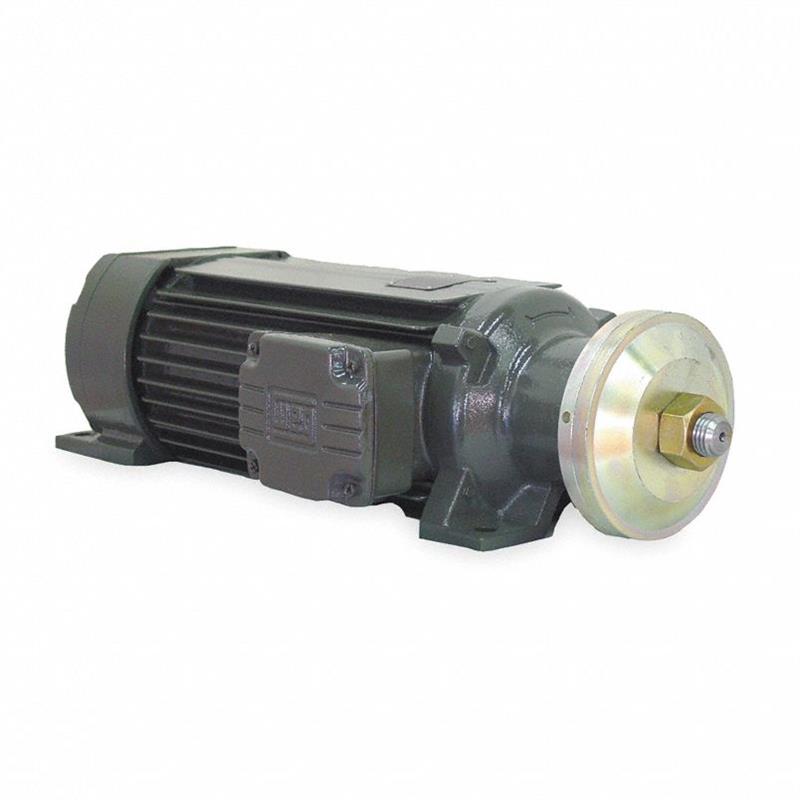

00718ES3ESA90LL WEG Motor, Saw Arbor (7.5 HP, 90L FRAME, 208-230/460 V, THREE PHASE, TEFC , 1730 RPM)

00718ES3ESA90LL WEG Motor, Saw Arbor (7.5 HP, 90L FRAME, 208-230/460 V, THREE PHASE, TEFC , 1730 RPM)

SKU:00718ES3ESA90LL

Regular price $1,351.84 USD
Regular price Sale price $1,351.84 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 00718ES3ESA90LL, 7.5 HP , 1730 RPM, 90L FRAME, 208-230/460 V , THREE PHASE, 60 Hz , TEFC , Saw Arbor Motor

Applications
Circular saws, Pendulum saws, Grinding machines, Polishing machines
Features
Saw Arbor Motors, 3-Phase, Cast Iron, Standard Efficiency, TEFC

Tech Specs

Brand
WEG Motors
Model Number
00718ES3ESA90LL
HP
7.5 HP
RPM
1730
FRAME
90L
VOLTAGE
208-230/460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
165
FEET
YES
TERMINAL BOX
LEFT
FLANGE
-
RATED CURRENT
22.4-20.3/10.1 A
LOCKED ROTOR CURRENT IL IN
8.2
LOCKED ROTOR CURRENT
166/83.1 A
LOCKED ROTOR TORQUE
3.7
BREAKDOWN TORQUE
4
EFFICIENCY 50
83.5
EFFICIENCY 75
85
EFFICIENCY 100
85.3
POWER FACTOR 50
0.6
POWER FACTOR 75
0.74
POWER FACTOR 100
0.8
SERVICE FACTOR
1.15
INERTIA KGM2
0.01401 kgm
INERTIA SQ FT
0.33246 sq.ft.
LOCKED ROTOR TIME
7 s
NOISE LEVEL
51 dB(A)
ALTITUDE
1000
DUTY CYCLE
S6 50%
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP54
NO-LOAD CURRENT
10.0/5.02 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
30.5 Nm
FULL LOAD TORQUE FT
22.5 .ft
SLIP
0.0389
DESIGN
N
TEMPERATURE RISE
80 K
BEARINGS D E
6308 ZZ
BEARINGS N D E
6208 ZZ
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
