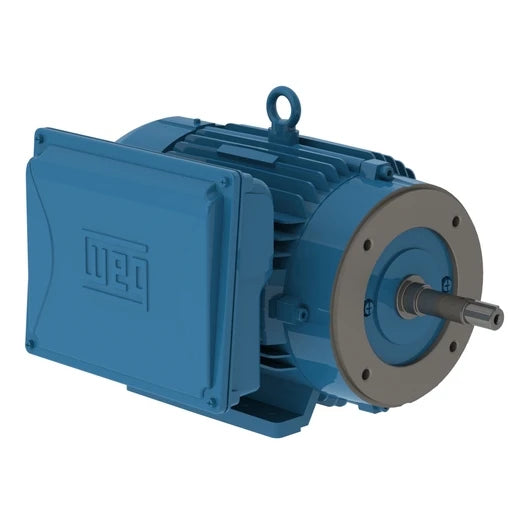

00718ES1C215JM WEG Industrial Pump Motor (7.5 HP, 1800 RPM, 1 Phase, 60Hz, 208-230V, TEFC, 213/5JM Frame)
00718ES1C215JM WEG Industrial Pump Motor (7.5 HP, 1800 RPM, 1 Phase, 60Hz, 208-230V, TEFC, 213/5JM Frame)
[COUNT] shoppers are looking at this right now
No reviews
SKU:00718ES1C215JM
Regular price
$0.00 USD
Regular price
$0.00 USD
Sale price
$0.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
00718ES1C215JM WEG Industrial Pump Motor (7.5 HP, 1800 RPM, 1 Phase, 60Hz, 208-230V, TEFC, 213/5JM Frame)
High starting torque
For applications on commercial and industrial pumps (JM/JP - mechanical seal/gasket)
Suitable for domestic and rural power supply conditions
Product features:
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 208-230 V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1800 rpm |
| Output rating | 7.5 HP |
|---|---|
| Mounting | Foot-mounted |
| Flange | C |
| Mounting | F-1 |
| Terminal box¹ | Left position |
| Enclosure | IC411 - TEFC |
