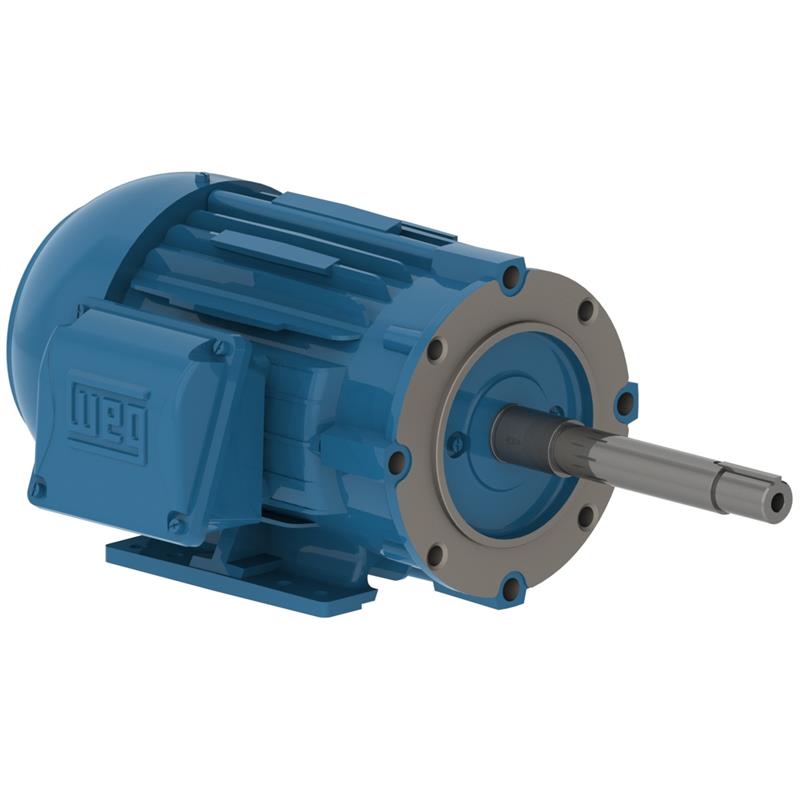

00712ET3E254JP-W22 WEG Motor, Close Coupled Pump Motor (7.5 HP, 254JP FRAME, 460 V, THREE PHASE, TEFC , 1175 RPM)

00712ET3E254JP-W22 WEG Motor, Close Coupled Pump Motor (7.5 HP, 254JP FRAME, 460 V, THREE PHASE, TEFC , 1175 RPM)

[COUNT] shoppers are looking at this right now

00712ET3E254JP-W22

$2,220.55 USD
$2,495.00 USD $2,220.55 USD
Sale Sold out
Shipping calculated at checkout.

WEG Motor 00712ET3E254JP-W22, 7.5 HP, RPM: 1175, FRAME: 254JP, 460 V, THREE PHASE: 60 Hz, : TEFC, WEG Close Coupled Pump Motor

Applications
Specially developed line for industrial and commercial pumping applications, such as Water pumping, Process, and Transfer and circulating pumps
Features
Close Coupled Pump Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC, JM & JP

Tech Specs

Brand
WEG Motors
Model Number
00712ET3E254JP-W22
HP
7.5 HP
RPM
1175
FRAME
254JP
VOLTAGE
460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
262
FEET
YES
TERMINAL BOX
LEFT
FLANGE
FC-184
RATED CURRENT
9.48 A
LOCKED ROTOR CURRENT IL IN
6.8
LOCKED ROTOR CURRENT
64.5 A
LOCKED ROTOR TORQUE
2.5
BREAKDOWN TORQUE
3
EFFICIENCY 50
89.5
EFFICIENCY 75
90.2
EFFICIENCY 100
91
POWER FACTOR 50
0.63
POWER FACTOR 75
0.74
POWER FACTOR 100
0.8
SERVICE FACTOR
1.25
INERTIA KGM2
0.16518 kgm
INERTIA SQ FT LB
3.9197 sq.ft.
LOCKED ROTOR TIME
30 s
NOISE LEVEL
59 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
4.50 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
44.8 Nm
FULL LOAD TORQUE LB FT
33.1 .ft
SLIP
0.0208
DESIGN
B
TEMPERATURE RISE
80 K
BEARINGS D E
6309 C3
BEARINGS N D E
6209 C3
REGREASING INTERVAL D E
20000 h
REGREASING INTERVAL N D E
20000 h
GREASE AMOUNT D E
13 g
GREASE AMOUNT N D E
9 g
