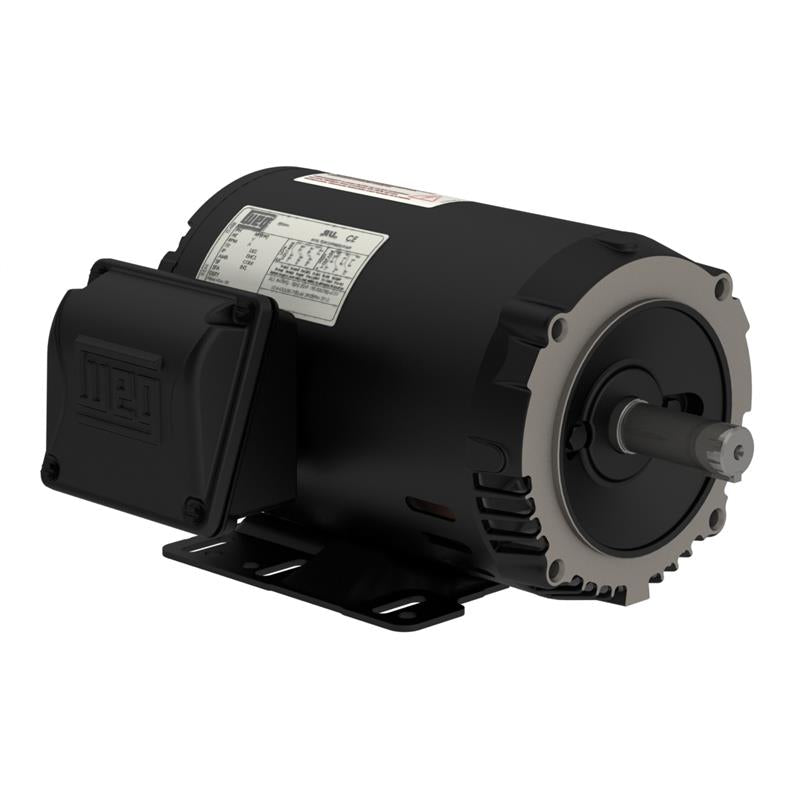

00536OT3H182TC-S WEG Motor (5 HP, 3600 RPM, 3 Phase, 182/4TC, ODP, 575 V, Foot Mount)
00536OT3H182TC-S WEG Motor (5 HP, 3600 RPM, 3 Phase, 182/4TC, ODP, 575 V, Foot Mount)
SKU:00536OT3H182TC-S
Regular price
$502.11 USD
Regular price
Sale price
$502.11 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG 00536OT3H182TC-S, 5 HP, 3600 RPM, 3 Phase, 182/4TC, ODP, 575 V, Foot Mount
| Applications | |
| WEG Open Drip Proof (ODP) motor is a general purpose line designed for environments where dirt and moisture are minimal. | |
| Features | |
| Number of poles: 2 through 6 | |
| Mounting: F-1 | |
| Efficiency levels: NEMA Premium | |
| Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V) | |
| Frame Sizes: NEMA 56 to 254/6T | |
| Foot mount / C-face / Footless availability | |
| Aluminum endshields | |
| Cast Iron flanges for improved strength | |
| New ventilation system for improved thermal performance | |
| Robust feet design suitable for tougher applications | |
| Terminal box rotatable in 90 degrees increments for flexibility during installation | |
Specifications | |
Brand |
WEG |
Catalog Number |
00536OT3H182TC-S |
Type |
General Purpose C-Face Motor |
HP |
5 |
RPM |
3600 |
Phase |
3 |
Frame |
182/4TC |
Enclosure |
ODP |
Voltage |
575 |
Full Load Amps |
4.9 |
Full Load Efficiency |
86.5 |
Frame Material |
Rolled Steel |
Service Factor |
1.15 |
"C" Dimensions |
14.764 |
Mounting |
Foot Mount |
Warranty |
1 Year |
Support Documents (pdf) | ||||
