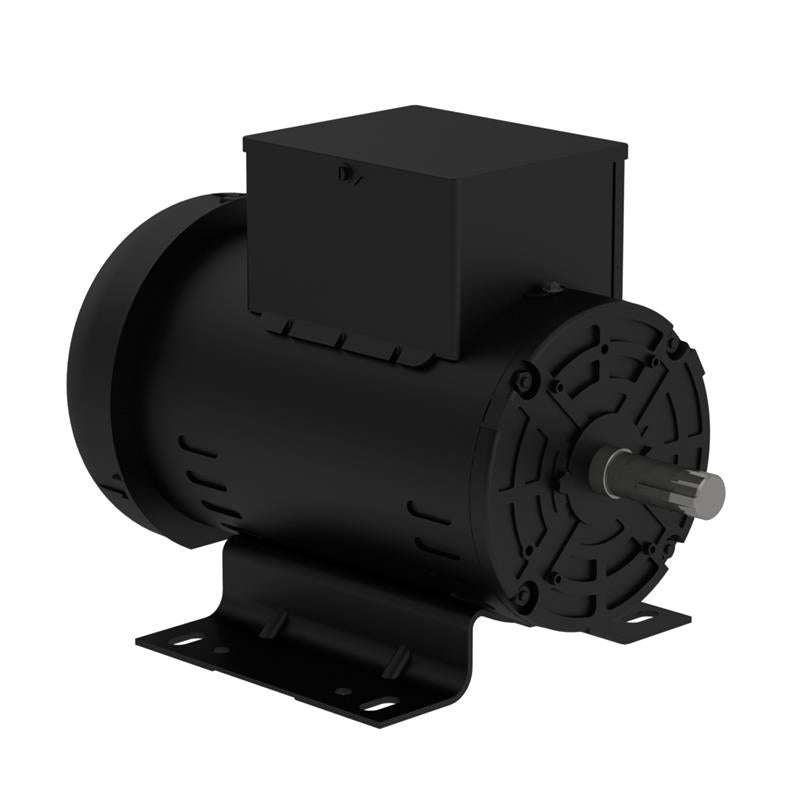

00536OS1CCDW184Y-S WEG Motor (5 HP, 3600 RPM, 1 Phase, 60 Hz, W182/4Y Frame, ODP, 208-230 V)

00536OS1CCDW184Y-S WEG Motor (5 HP, 3600 RPM, 1 Phase, 60 Hz, W182/4Y Frame, ODP, 208-230 V)

👁️ [COUNT] People are currently viewing this product.

00536OS1CCDW184Y-S

$409.63 USD
$526.00 USD $409.63 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

WEG 00536OS1CCDW184Y-S, 5 HP, 3600 RPM, 1 Phase, 60 Hz, W182/4Y Frame, Foot-mounted, ODP, 208-230 V

Applications
High Starting Torque makes these motors ideal for a wide range of applications.
Features
High Starting Torque
182T frames and up are cast iron for severe duty
NPT Threaded Holes in Terminal Box
Class F insulation
V-ring Seals
Class F insulation

Specifications

Brand
WEG
Catalog Number
00536OS1CCDW184Y-S
Type
General Purpose Motor
Series
Thermally Protected
HP
5
RPM
3600
Phase
1
Hertz
60
Frame
W182/4Y
Mounting
Foot-mounted
Enclosure
ODP
Voltage
208-230
Full Load Amps
20.7
Full Load Efficiency
80
Frame Material
Rolled Steel
Service Factor
1
"C" Dimensions
15.152
Warranty
1 Year

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • ALL IMAGES SHOWN ON OUR WEBSITE ARE FOR ILLUSTRATION PURPOSE ONLY AND MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT. ACTUAL PRODUCTS MAY VARY FROM THE IMAGES SHOWN.
View full details

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
G
Graham Sullivan
Weg 5hp 1 phase

Great replacement motor for my 3 phase Ingersoll Rand air compressor.
