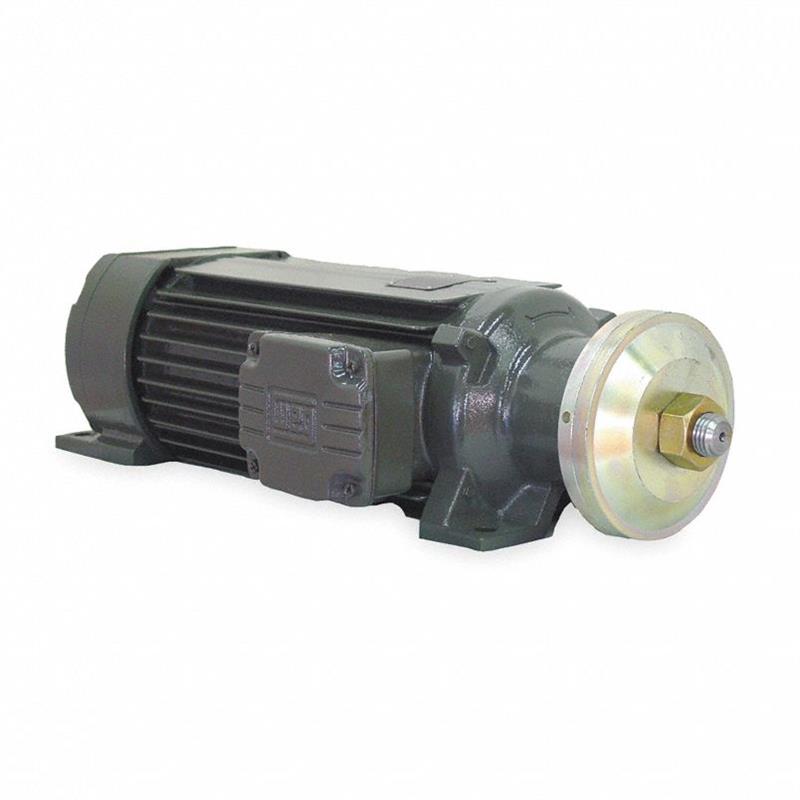

00536ES3ESA80ML WEG Motor, Saw Arbor (5 HP, 80M FRAME, 208-230/460 V, THREE PHASE, TEFC , 3470 RPM)

00536ES3ESA80ML WEG Motor, Saw Arbor (5 HP, 80M FRAME, 208-230/460 V, THREE PHASE, TEFC , 3470 RPM)

00536ES3ESA80ML

$845.35 USD
$845.35 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 00536ES3ESA80ML, 5 HP , 3470 RPM, 80M FRAME, 208-230/460 V , THREE PHASE, 60 Hz , TEFC , Saw Arbor Motor
Applications
Circular saws, Pendulum saws, Grinding machines, Polishing machines
Features
Saw Arbor Motors, 3-Phase, Cast Iron, Standard Efficiency, TEFC

Tech Specs

Brand
WEG Motors
Model Number
00536ES3ESA80ML
HP
5 HP
RPM
3470
FRAME
80M
VOLTAGE
208-230/460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
99
FEET
YES
TERMINAL BOX
LEFT
FLANGE
-
RATED CURRENT
14.7-13.3/6.65 A
LOCKED ROTOR CURRENT IL IN
8
LOCKED ROTOR CURRENT
106/53.2 A
LOCKED ROTOR TORQUE
3.4
BREAKDOWN TORQUE
4.1
EFFICIENCY 50
82
EFFICIENCY 75
84.5
EFFICIENCY 100
85
POWER FACTOR 50
0.66
POWER FACTOR 75
0.77
POWER FACTOR 100
0.82
SERVICE FACTOR
1.15
INERTIA KGM2
0.00412 kgm
INERTIA SQ FT
0.09777 sq.ft.
LOCKED ROTOR TIME
7 s
NOISE LEVEL
62 dB(A)
ALTITUDE
1000
DUTY CYCLE
S6 50%
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP54
NO-LOAD CURRENT
5.74/2.87 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
10.1 Nm
FULL LOAD TORQUE FT
7.47 .ft
SLIP
0.0361
DESIGN
N
TEMPERATURE RISE
80 K
BEARINGS D E
6307 ZZ
BEARINGS N D E
6207 ZZ
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
