• 00518OS1CCD184T WEG General Purpose Motor (5 HP, 1800 RPM, 4P, 1 Phase, 208-230 Volt, 60 Hertz, F-1 Mount, 184T Frame, 60 Hz, Foot-mounted, ODP Enclosure) - KG Power Systems
1 1

WEG

00518OS1CCD184T WEG General Purpose Motor (5 HP, 1800 RPM, 4P, 1 Phase, 208-230 Volt, 60 Hertz, F-1 Mount, 184T Frame, 60 Hz, Foot-mounted, ODP Enclosure)

00518OS1CCD184T WEG General Purpose Motor (5 HP, 1800 RPM, 4P, 1 Phase, 208-230 Volt, 60 Hertz, F-1 Mount, 184T Frame, 60 Hz, Foot-mounted, ODP Enclosure)

[COUNT] shoppers are looking at this right now

00518OS1CCD184T

$606.98 USD
$682.00 USD $606.98 USD
Sale Sold out
Shipping calculated at checkout.

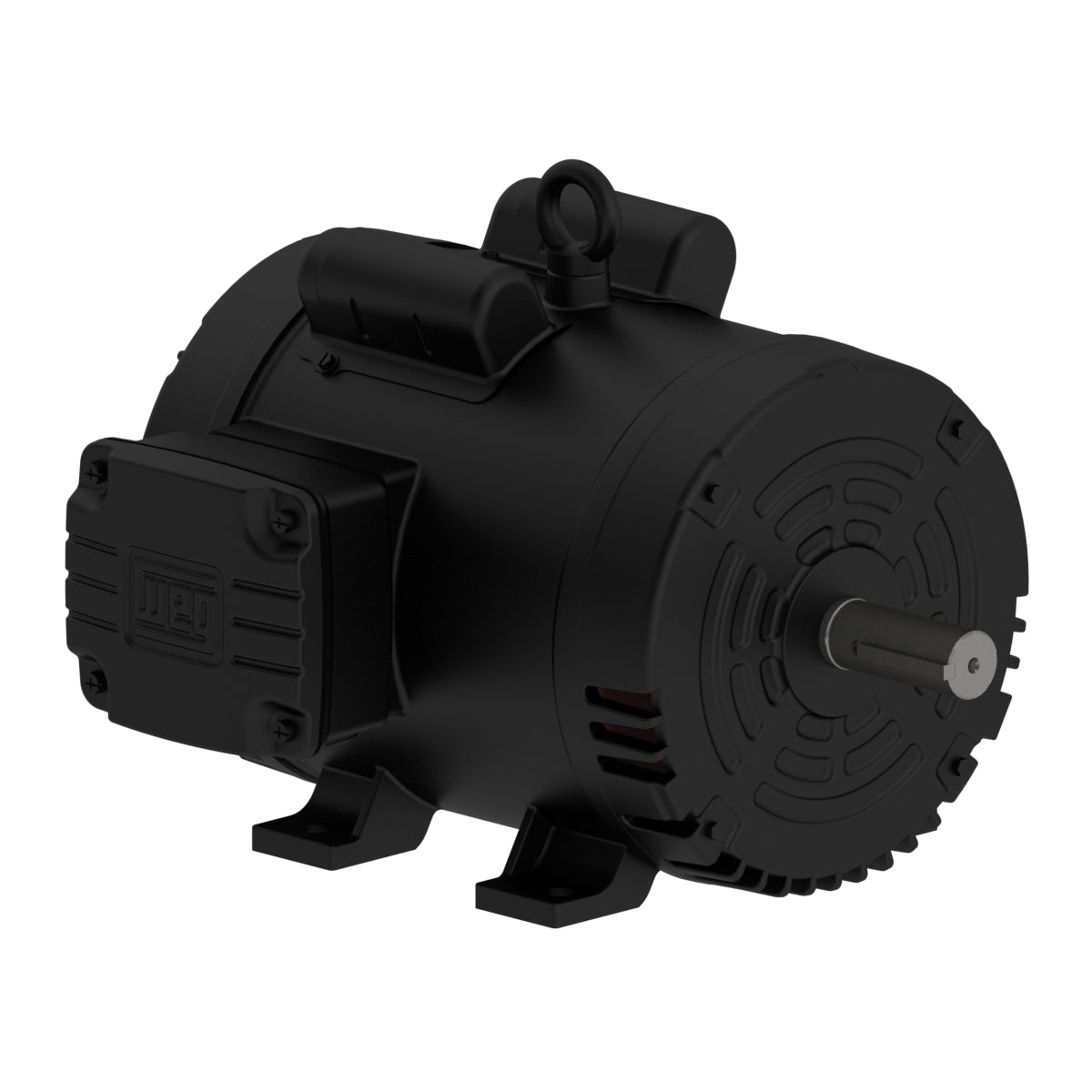

WEG 00518OS1CCD184T, 5 HP, 1800 RPM, 1 Phase, 60 Hertz, 184T Frame, Foot-mounted, ODP, 208-230 V

Applications
High Starting Torque makes these motors ideal for a wide range of applications.
Features
High Starting Torque
182T frames and up are cast iron for severe duty
NPT Threaded Holes in Terminal Box
Class F insulation
V-ring Seals
Class F insulation

Specifications

Brand
WEG
Catalog Number
00518OS1CCD184T
Type
General Purpose Motor
Series
Single Phase Motor
HP
5
RPM
1800
Phase
1
Hertz
60
Frame
184T
Mounting
Foot-mounted
Enclosure
ODP
Voltage
208-230
Frame Material
Cast Iron
Service Factor
1.25
"C" Dimensions
14.875
Warranty
1 Year

  • Many products sold by KG Power Systems are shipped directly from the manufacturer. Returns, cancellations, and refunds are subject to manufacturer approval.
  • Availability is subject to change based on current inventory.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
View full details
STOCK IS SUBJECT TO CHANGE WITHOUT NOTICE.
