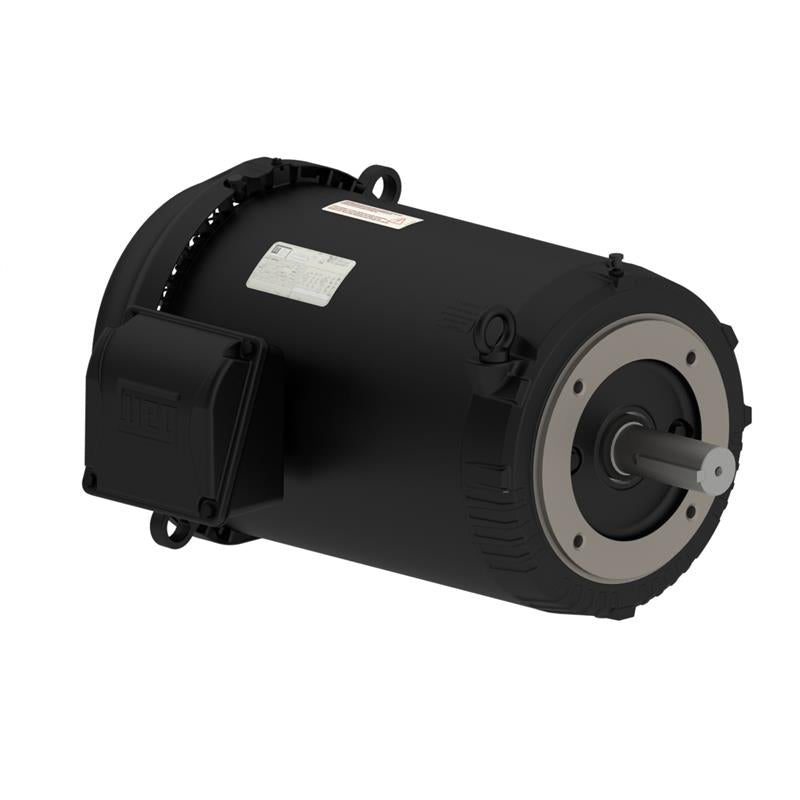

00518ET3ER184TC-S WEG General Purpose Motor (5 HP, 1800 RPM, 3 Phase, 60 Hz, 182/4TC Frame, 230/460 Volt, TEFC Enclosure, Footless)
00518ET3ER184TC-S WEG General Purpose Motor (5 HP, 1800 RPM, 3 Phase, 60 Hz, 182/4TC Frame, 230/460 Volt, TEFC Enclosure, Footless)
[COUNT] shoppers are looking at this right now
No reviews
SKU:00518ET3ER184TC-S
Regular price
$628.34 USD
Regular price
$706.00 USD
Sale price
$628.34 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
WEG 00518ET3ER184TC-S, 5 HP, 1800 RPM, 3 Phase, 60 Hz, 182/4TC Frame, 230/460V, TEFC, Footless
| Applications |
| General Purpose Motor |
| Features |
| New ventilation system for improved thermal performance |
| Color coded/numbered leads as standard for easy wiring |
| Bearing cap as standard on flanged motors, optional on non-flanged |
| IP55 Ingress Protection as standard, being appropriate for severe environments |
| Motor frame painting system resistant to a minimum of 500 hours ASTM B117 salt spray test |
| Suitable for VFD operation as per NEMA MG1 part 31.4.4.2 |
| Aluminum endshields and flange |
| Internal bolts, giving a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load, if required |
| Double shielded ball bearings |
|
Specifications |
|
|
Brand
|
WEG
|
|
Catalog Number
|
00518ET3ER184TC-S
|
|
Type
|
General Purpose Motor
|
|
HP
|
5
|
|
RPM
|
1800
|
|
Phase
|
3
|
|
Frequency
|
60 Hz
|
|
Frame
|
182/4TC
|
|
Voltage
|
230/460
|
|
Enclosure
|
TEFC
|
|
Mounting
|
Footless
|
|
FL Efficiency
|
89.5
|
|
FL Amps
|
6.5
|
|
Construction
|
Rolled Steel
|
|
Service Factor
|
1.15
|
|
"C" Dimensions
|
17.913
|
|
Drive End Flange Type
|
C-Face
|
|
Warranty
|
1 Year
|
|
