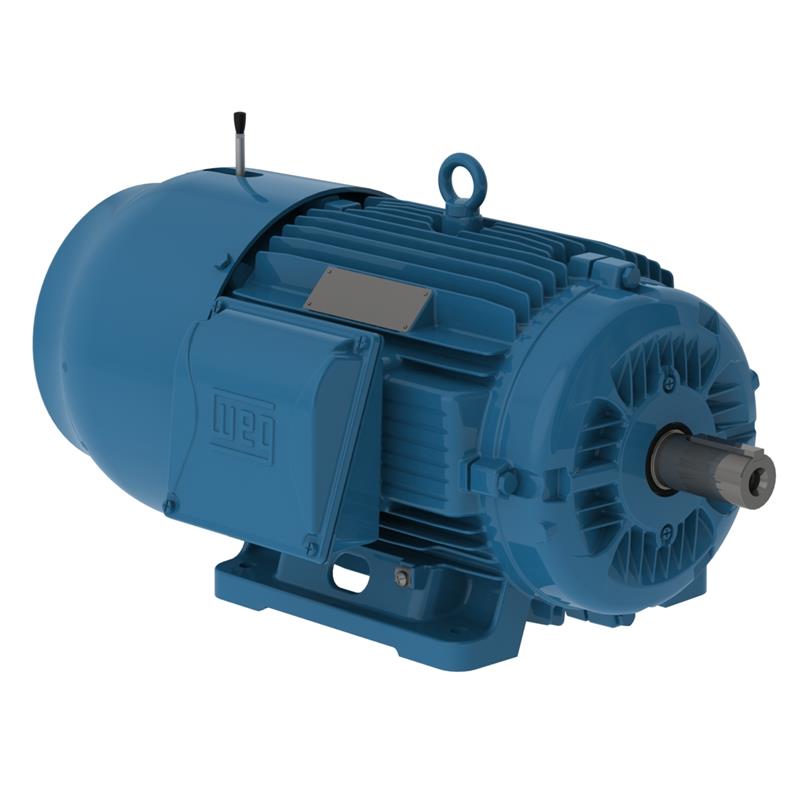

00518ET3EBM184T-W22 WEG Motor (5 HP, 1800 RPM, 3 Phase, 182/4T Frame, TEFC, 230/460 V, Foot Mount)

00518ET3EBM184T-W22 WEG Motor (5 HP, 1800 RPM, 3 Phase, 182/4T Frame, TEFC, 230/460 V, Foot Mount)

00518ET3EBM184T-W22

$1,669.56 USD
$1,669.56 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG 00518ET3EBM184T-W22, 5 HP, 1800 RPM, 3 Phase, 182/4T Frame, TEFC, 230/460 V, Foot Mount

Applications
WEG W22 brake motors consist of an induction motor coupled to a disc brake. Brake is of sturdy construction with few moving parts which guarantees long durability and minimum maintenance.
Features
Class F insulation (Impregnation Resin and
Magnet wire are class H)
F1 Mounted
Stainless Steel Nameplate - Laser etched with high contrast background
NPT Threaded terminal box
Armature type brake
Manual Release
Inverter Rated: 11000:1 for variable torque20:1 for constant torque
Regreasable ball bearings (Frames 254T and up)
Stainless Steel Nameplate - Laser etched with high contrast background

Specifications

Brand
WEG
Catalog Number
00518ET3EBM184T-W22
Type
Brake Motor
HP
5
RPM
1800
Phase
3
Frame
182/4T
Enclosure
TEFC
Voltage
230/460
FL Amps
6.45
FL Efficiency
89.5
Frame Material
Cast Iron
Service Factor
1.25
"C" Dimensions
19.314
Mounting
Foot Mount
Item Condition
Factory New
Warranty
1 Year
