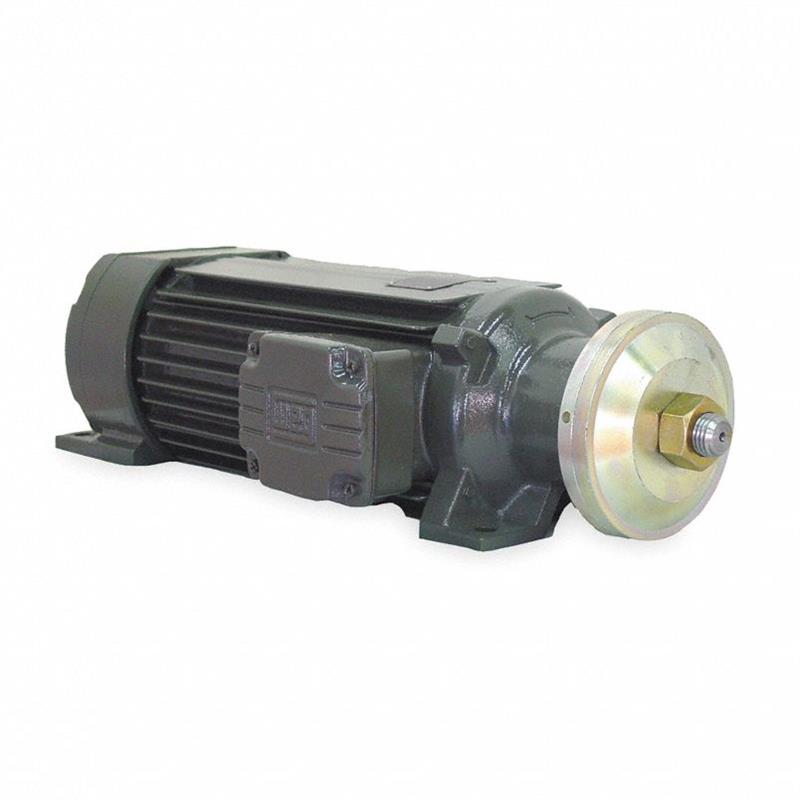

00518ES3ESA90LR WEG Motor, Saw Arbor (5 HP, 90L FRAME, 208-230/460 V, THREE PHASE, TEFC , 1740 RPM)

00518ES3ESA90LR WEG Motor, Saw Arbor (5 HP, 90L FRAME, 208-230/460 V, THREE PHASE, TEFC , 1740 RPM)

[COUNT] shoppers are looking at this right now

00518ES3ESA90LR

$0.00 USD
$1,701.00 USD $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

WEG Motor 00518ES3ESA90LR, 5 HP , 1740 RPM, 90L FRAME, 208-230/460 V , THREE PHASE, 60 Hz , TEFC , Saw Arbor Motor

Applications
Circular saws, Pendulum saws, Grinding machines, Polishing machines
Features
Saw Arbor Motors, 3-Phase, Cast Iron, Standard Efficiency, TEFC

Tech Specs

Brand
WEG Motors
Model Number
00518ES3ESA90LR
HP
5 HP
RPM
1740
FRAME
90L
VOLTAGE
208-230/460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
143
FEET
YES
TERMINAL BOX
RIGHT
FLANGE
-
RATED CURRENT
15.5-14.1/7.03 A
LOCKED ROTOR CURRENT IL IN
8
LOCKED ROTOR CURRENT
112/56.2 A
LOCKED ROTOR TORQUE
3.8
BREAKDOWN TORQUE
4.1
EFFICIENCY 50
82
EFFICIENCY 75
84
EFFICIENCY 100
84.5
POWER FACTOR 50
0.58
POWER FACTOR 75
0.71
POWER FACTOR 100
0.78
SERVICE FACTOR
1.15
INERTIA KGM2
0.01121 kgm
INERTIA SQ FT
0.26601 sq.ft.
LOCKED ROTOR TIME
8 s
NOISE LEVEL
51 dB(A)
ALTITUDE
1000
DUTY CYCLE
S6 50%
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP54
NO-LOAD CURRENT
8.03/4.02 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
20.2 Nm
FULL LOAD TORQUE FT
14.9 .ft
SLIP
0.0333
DESIGN
N
TEMPERATURE RISE
80 K
BEARINGS D E
6308 ZZ
BEARINGS N D E
6208 ZZ
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
