WEG

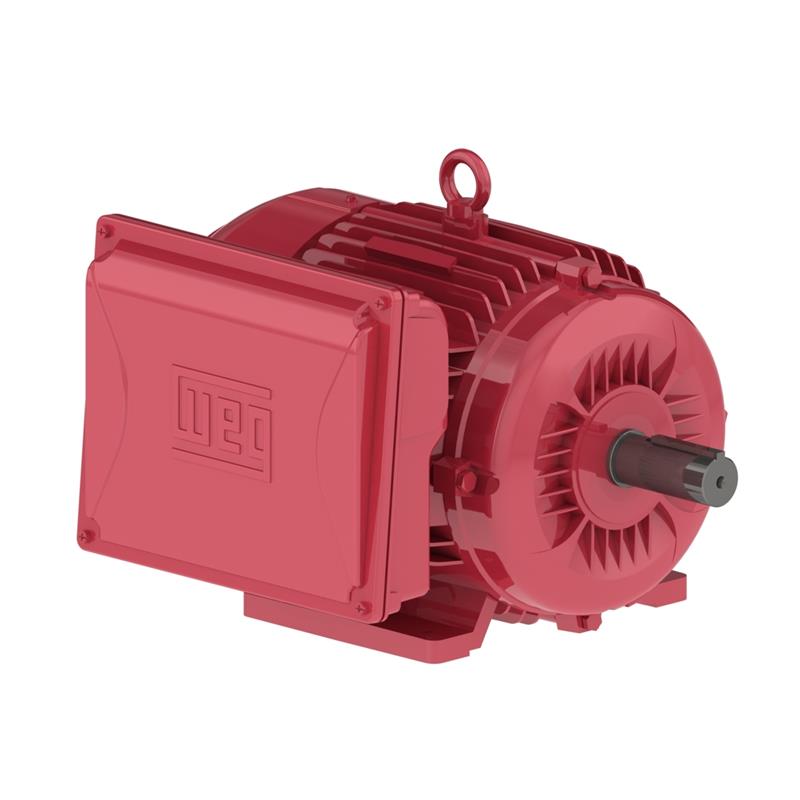

00518ES1DFD184T-W22 WEG Motor, Farm Duty (5 HP, 184T FRAME, 230 V, SINGLE PHASE, TEFC , 1730 RPM)

00518ES1DFD184T-W22 WEG Motor, Farm Duty (5 HP, 184T FRAME, 230 V, SINGLE PHASE, TEFC , 1730 RPM)

SKU:00518ES1DFD184T-W22

Regular price $782.68 USD
Regular price Sale price $782.68 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 00518ES1DFD184T-W22, 5 HP, RPM: 1730, FRAME: 184T, 230 V, SINGLE PHASE: 60 Hz, : TEFC, WEG Farm Duty Motor
Applications
Pumps, Fans, Conveyors, Poultry equipment, Air compressors, Other farm machinery
Features
Farm Duty Motor, Single Phase, Rolled Steel or Cast Iron, Standard Efficiency, TEFC

Tech Specs

Brand
WEG Motors
Model Number
00518ES1DFD184T -W22
HP
5 HP
RPM
1730
FRAME
184T
VOLTAGE
230 V
PHASE
SINGLE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
112
FEET
YES
TERMINAL BOX
LEFT
FLANGE
-
RATED CURRENT
21.4 A
LOCKED ROTOR CURRENT IL IN
8
LOCKED ROTOR CURRENT
171 A
LOCKED ROTOR TORQUE
3.7
BREAKDOWN TORQUE
2.7
EFFICIENCY 50
72
EFFICIENCY 75
78
EFFICIENCY 100
79
POWER FACTOR 50
0.86
POWER FACTOR 75
0.92
POWER FACTOR 100
0.95
SERVICE FACTOR
1.15
INERTIA KGM2
0.01830 kgm
INERTIA SQ FT
0.43426 sq.ft.
LOCKED ROTOR TIME
6 s
NOISE LEVEL
-
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
8.40 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
20.3 Nm
FULL LOAD TORQUE FT
15.0 .ft
SLIP
0.0389
DESIGN
-
TEMPERATURE RISE
80 K
BEARINGS D E
6307 ZZ
BEARINGS N D E
6206 ZZ
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
