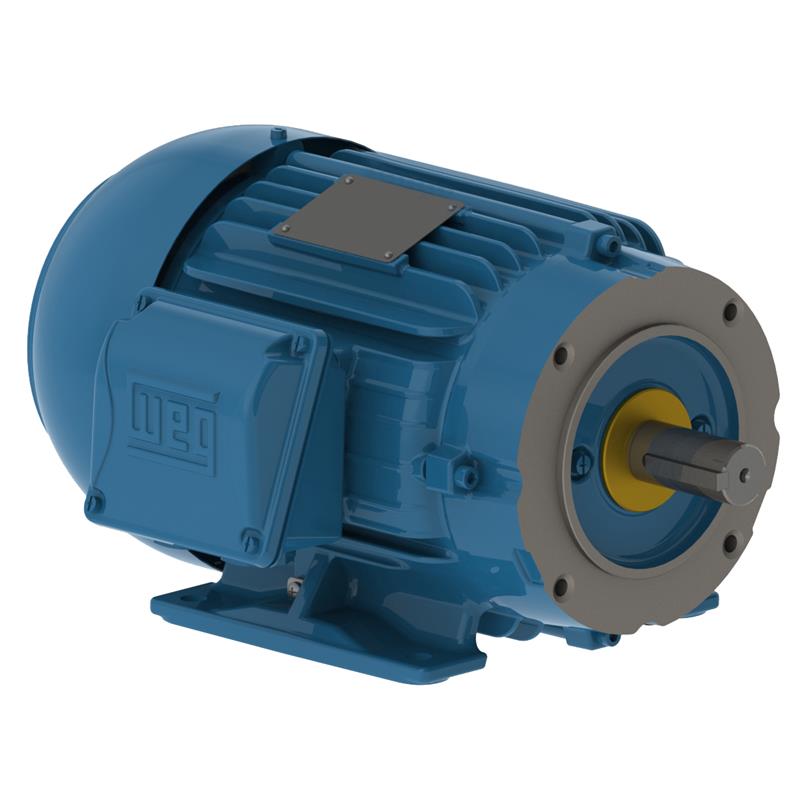

00512ST3QIE215TC-W22 WEG Motor (5 HP, 1200 RPM, 3 Phase, 213/5TC Frame, TEFC Enclosure, 460 Voltage)
00512ST3QIE215TC-W22 WEG Motor (5 HP, 1200 RPM, 3 Phase, 213/5TC Frame, TEFC Enclosure, 460 Voltage)
SKU:00512ST3QIE215TC-W22
Regular price
$1,443.65 USD
Regular price
Sale price
$1,443.65 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG 00512ST3QIE215TC-W22, 5 HP, 3.7 KW, 1200 RPM, 3 Phase, 213/5TC Frame, TEFC Enclosure, 460 Voltage
| Applications | |
| WEG's IEEE841 motors are specially suited for Pulp & Paper mills, Steel mills, ical Plants and diverse demanding applications requiring severe duty long life motors. WEG's W22 cast iron platform has an improved cooling system and solid feet for cooler operation and reduced vibration and noise extending the life of the motor. | |
| Features | |
| Class F insulation (Impregnation Resin and magnet wire are class H) | |
| F1 Mounted (F2 convertible). Frames 447T and up can easily be F2 converted by simply rotating the terminal box adapter | |
| Stainless Steel Nameplate - Laser etched with high contrast background | |
| All frames with regreasable ball bearings | |
Specifications | |
Brand |
WEG |
Catalog Number |
00512ST3QIE215TC-W22 |
Type |
Motors |
HP |
5 |
KW |
3.7 |
RPM |
1200 |
Phase |
3 |
C Dimension |
19.517 |
Service Factor |
1.25 |
Frame |
213/5TC |
Enclosure |
TEFC |
Full Load Amps |
6.83 |
Mount |
Foot Mount |
Voltage |
460 |
Warranty |
1 Year |
Support Documents (pdf) | ||||
