WEG

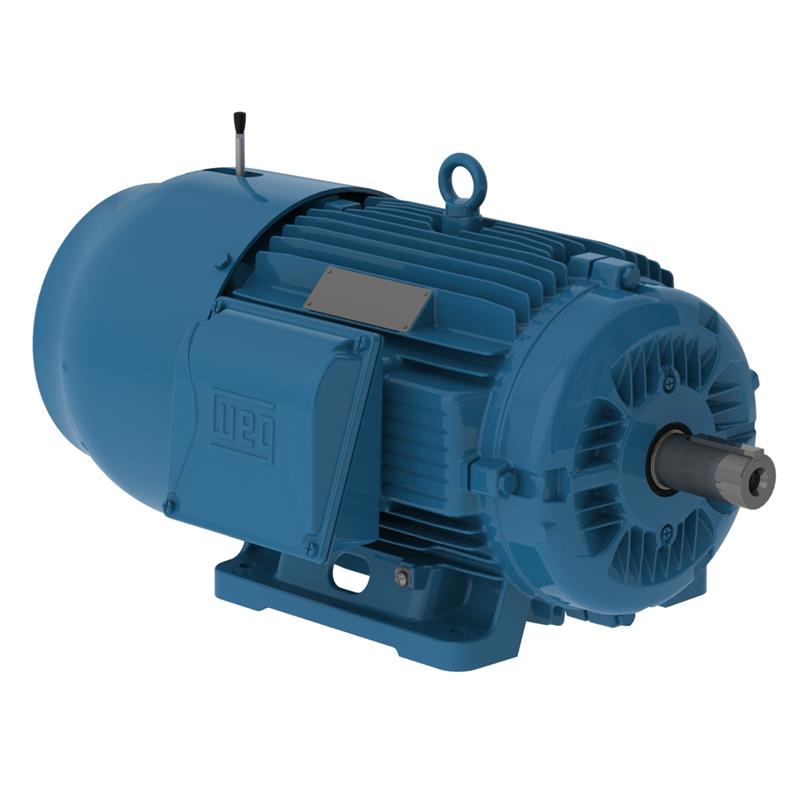

00512ET3EBM215T-W22 WEG Motor (5 HP, 1200 RPM, 3 Phase, 213/5T Frame, TEFC, 230/460 V, Foot Mount)
00512ET3EBM215T-W22 WEG Motor (5 HP, 1200 RPM, 3 Phase, 213/5T Frame, TEFC, 230/460 V, Foot Mount)
No reviews
SKU:00512ET3EBM215T-W22
Regular price
$2,482.13 USD
Regular price
Sale price
$2,482.13 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG 00512ET3EBM215T-W22, 5 HP, 1200 RPM, 3 Phase, 213/5T Frame, TEFC, 230/460 V, Foot Mount
| Applications | |
| WEG W22 brake motors consist of an induction motor coupled to a disc brake. Brake is of sturdy construction with few moving parts which guarantees long durability and minimum maintenance. | |
| Features | |
| Class F insulation (Impregnation Resin and | |
| Magnet wire are class H) | |
| F1 Mounted | |
| Stainless Steel Nameplate - Laser etched with high contrast background | |
| NPT Threaded terminal box | |
| Armature type brake | |
| Manual Release | |
| Inverter Rated: 11000:1 for variable torque20:1 for constant torque | |
| Regreasable ball bearings (Frames 254T and up) | |
| Stainless Steel Nameplate - Laser etched with high contrast background | |
Specifications | |
Brand |
WEG |
Catalog Number |
00512ET3EBM215T-W22 |
Type |
Brake Motor |
HP |
5 |
RPM |
1200 |
Phase |
3 |
Frame |
213/5T |
Enclosure |
TEFC |
Voltage |
230/460 |
FL Amps |
6.83 |
FL Efficiency |
89.5 |
Frame Material |
Cast Iron |
Service Factor |
1.25 |
"C" Dimensions |
23.188 |
Mounting |
Foot Mount |
Item Condition |
Factory New |
Warranty |
1 Year |
Support Documents (pdf) | ||||
