WEG

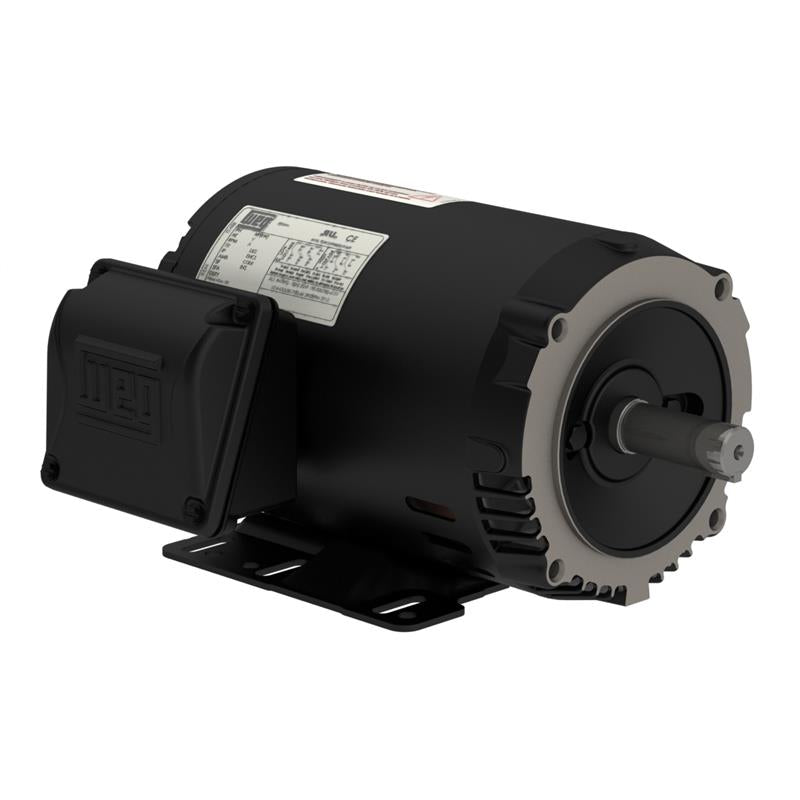

00336OT3H145TC-S WEG Motor (3 HP, 3600 RPM, 3 Phase, 143/5TC, ODP, 575 V, Foot Mount)
00336OT3H145TC-S WEG Motor (3 HP, 3600 RPM, 3 Phase, 143/5TC, ODP, 575 V, Foot Mount)
[COUNT] shoppers are looking at this right now
No reviews
SKU:00336OT3H145TC-S
Regular price
$515.31 USD
Regular price
$579.00 USD
Sale price
$515.31 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
WEG 00336OT3H145TC-S, 3 HP, 3600 RPM, 3 Phase, 143/5TC, ODP, 575 V, Foot Mount
| Applications | |
| WEG Open Drip Proof (ODP) motor is a general purpose line designed for environments where dirt and moisture are minimal. | |
| Features | |
| Number of poles: 2 through 6 | |
| Mounting: F-1 | |
| Efficiency levels: NEMA Premium | |
| Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V) | |
| Frame Sizes: NEMA 56 to 254/6T | |
| Foot mount / C-face / Footless availability | |
| Aluminum endshields | |
| Cast Iron flanges for improved strength | |
| New ventilation system for improved thermal performance | |
| Robust feet design suitable for tougher applications | |
| Terminal box rotatable in 90 degrees increments for flexibility during installation | |
Specifications | |
Brand |
WEG |
Catalog Number |
00336OT3H145TC-S |
Type |
General Purpose C-Face Motor |
HP |
3 |
RPM |
3600 |
Phase |
3 |
Frame |
143/5TC |
Enclosure |
ODP |
Voltage |
575 |
Full Load Amps |
2.9 |
Full Load Efficiency |
85.5 |
Frame Material |
Rolled Steel |
Service Factor |
1.15 |
"C" Dimensions |
12.362 |
Mounting |
Foot Mount |
Warranty |
1 Year |
Support Documents (pdf) | ||||
