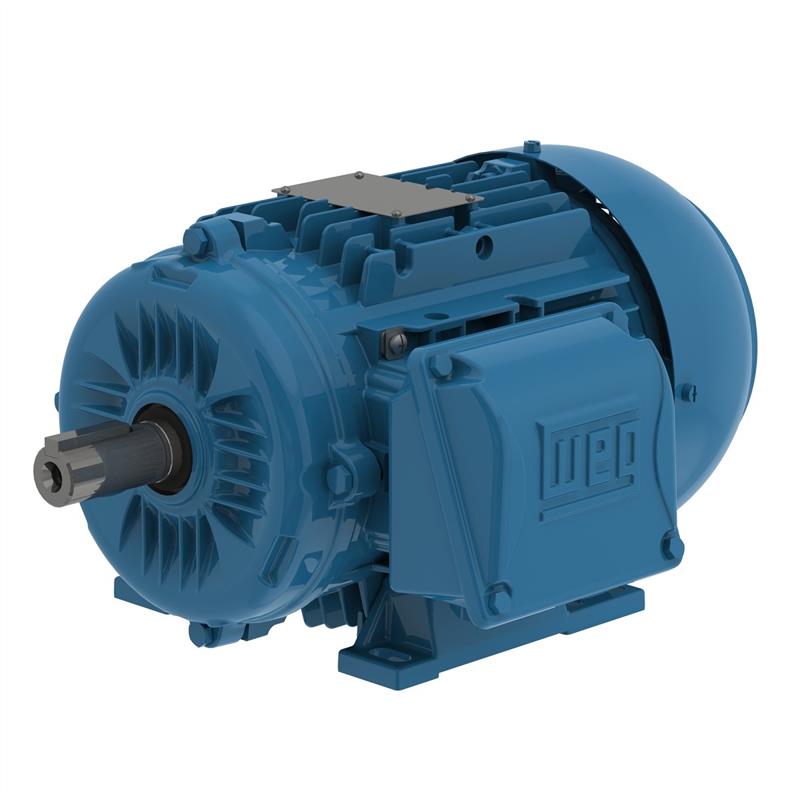

00336ET3WAL100L-W22 WEG Motor (4 HP, 3600/3000 RPM, 3 Phase, 100L Frame, TEFC Enclosure, 460//220-240/380-415 Voltage)
00336ET3WAL100L-W22 WEG Motor (4 HP, 3600/3000 RPM, 3 Phase, 100L Frame, TEFC Enclosure, 460//220-240/380-415 Voltage)
[COUNT] shoppers are looking at this right now
No reviews
SKU:00336ET3WAL100L-W22
Regular price
$716.45 USD
Regular price
$805.00 USD
Sale price
$716.45 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
WEG 00336ET3WAL100L-W22, 4 HP, 3 KW, 3600/3000 RPM, 3 Phase, 100L Frame, TEFC Enclosure, 460//220-240/380-415 Voltage
| Applications | |
| This line is designed and built according to European IEC34 and IEC79 standards. | |
| Features | |
| 60 Hz (1.15 service factor) and 50 Hz (1.0 service factor) | |
| Class F insulation (Impregnation Resin and Magnet wire are class H) | |
| F2 mounted as standard (F1 convertible) | |
| Stainless Steel Nameplate - Laser etched with High contrast background | |
| Regreasable ball bearings (Frames 160 and up) | |
| Gasketed conduit box | |
| Suitable for WYE/Delta Start (W and Y voltage code motors) | |
|
Specifications |
|
|
Brand
|
WEG
|
|
Catalog Number
|
00336ET3WAL100L-W22
|
|
Type
|
IEC Tru-Metric Motor
|
|
HP
|
4
|
|
KW
|
3
|
|
RPM
|
3600/3000
|
|
Phase
|
3
|
|
C Dimension
|
14.803
|
|
Service Factor
|
1.25
|
|
Frame
|
100L
|
|
Enclosure
|
TEFC
|
|
Full Load Amps
|
5.01
|
|
Mount
|
Foot Mount
|
|
Voltage
|
460//220-240/380-415
|
|
Warranty
|
1 Year
|
|
