WEG

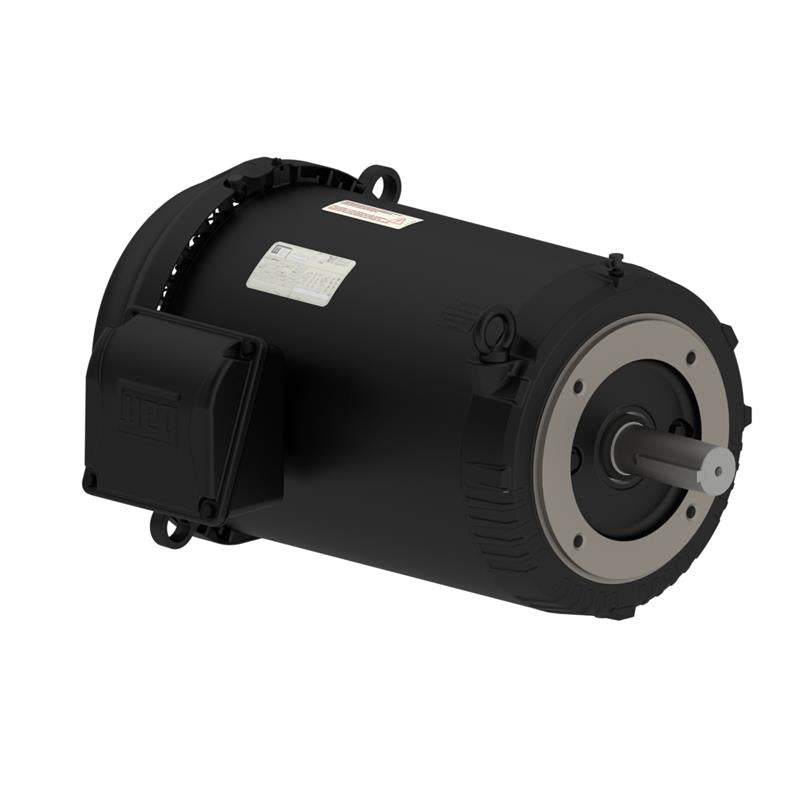

00336ET3E56CFL-S WEG Motor (3 HP, 3600 RPM, 3 Phase, 60 Hz, 56C Frame, 230/460V, TEFC, Footless)

00336ET3E56CFL-S WEG Motor (3 HP, 3600 RPM, 3 Phase, 60 Hz, 56C Frame, 230/460V, TEFC, Footless)

00336ET3E56CFL-S

$441.63 USD
$441.63 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG 00336ET3E56CFL-S, 3 HP, 3600 RPM, 3 Phase, 60 Hz, 56C Frame, 230/460V, TEFC, Footless

Applications
General Purpose Motor
Features
New ventilation system for improved thermal performance
Color coded/numbered leads as standard for easy wiring
Bearing cap as standard on flanged motors, optional on non-flanged
IP55 Ingress Protection as standard, being appropriate for severe environments
Motor frame painting system resistant to a minimum of 500 hours ASTM B117 salt spray test
Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
Aluminum endshields and flange
Internal bolts, giving a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load, if required
Double shielded ball bearings

Specifications

Brand
WEG
Catalog Number
00336ET3E56CFL-S
Type
General Purpose Motor
HP
3
RPM
3600
Phase
3
Frequency
60 Hz
Frame
56C
Voltage
230/460
Enclosure
TEFC
Mounting
Footless
FL Efficiency
86.5
FL Amps
3.5
Construction
Rolled Steel
Service Factor
1.15
"C" Dimensions
15.079
Drive End Flange Type
C-Face
Warranty
1 Year
