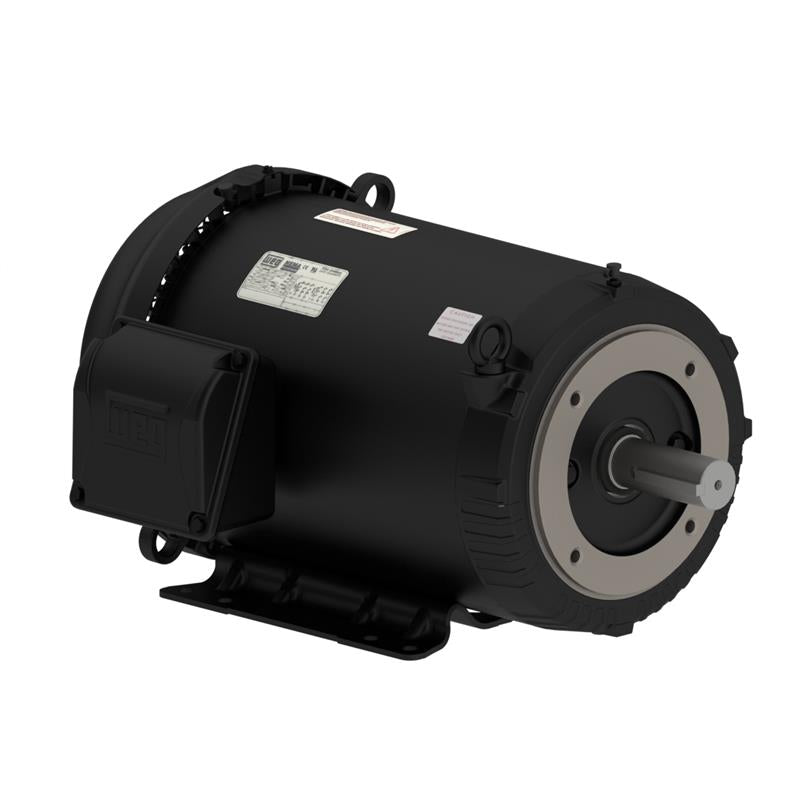

00336ET3E145TC-S WEG Motor (3 HP, 3600 RPM, 3 Phase, 60 Hz, 143/5TC Frame, Foot Mount, TEFC, 230/460 V)
00336ET3E145TC-S WEG Motor (3 HP, 3600 RPM, 3 Phase, 60 Hz, 143/5TC Frame, Foot Mount, TEFC, 230/460 V)
SKU:00336ET3E145TC-S
Regular price
$491.18 USD
Regular price
Sale price
$491.18 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG 00336ET3E145TC-S, 3 HP, 3600 RPM, 3 Phase, 60 Hz, 143/5TC Frame, Foot Mount, TEFC, 230/460 V
| Applications | |
| General Purpose Motor | |
| Features | |
| Rated Output: 0.25 to 25 HP | |
| Number of Poles: 2 to 6 | |
| Class F insulation | |
| Frame Sizes: NEMA 56 to 254/6T | |
| Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V) | |
| F1 mount as standard | |
| New ventilation system for improved thermal performance | |
| IP55 Ingress Protection as standard, being appropriate for severe environments | |
| Suitable for VFD operation as per NEMA MG1 part 31.4.4.2 | |
| Color coded/numbered leads as standard for easy wiring | |
| New and more robust eyebolts design (frames 182/4T and up) plus an additional eyebolt on non-drive end allowing vertical shaft down lifting for frames 213/5T and 254/6T | |
Specifications | |
Brand |
WEG |
Catalog Number |
00336ET3E145TC-S |
Type |
General Purpose Motor |
HP |
3 |
RPM |
3600 |
Phase |
3 |
Frame |
143/5TC |
Mounting |
Foot Mount |
Enclosure |
TEFC |
Voltage |
230/460 |
FL Amps |
3.5 |
FL Efficiency |
86.5 |
Construction |
Rolled Steel |
Service Factor |
1.15 |
"C" Dimensions |
15.157 |
Drive End Flange Type |
C-Face |
Warranty |
1 Year |
Support Documents (pdf) | ||||
