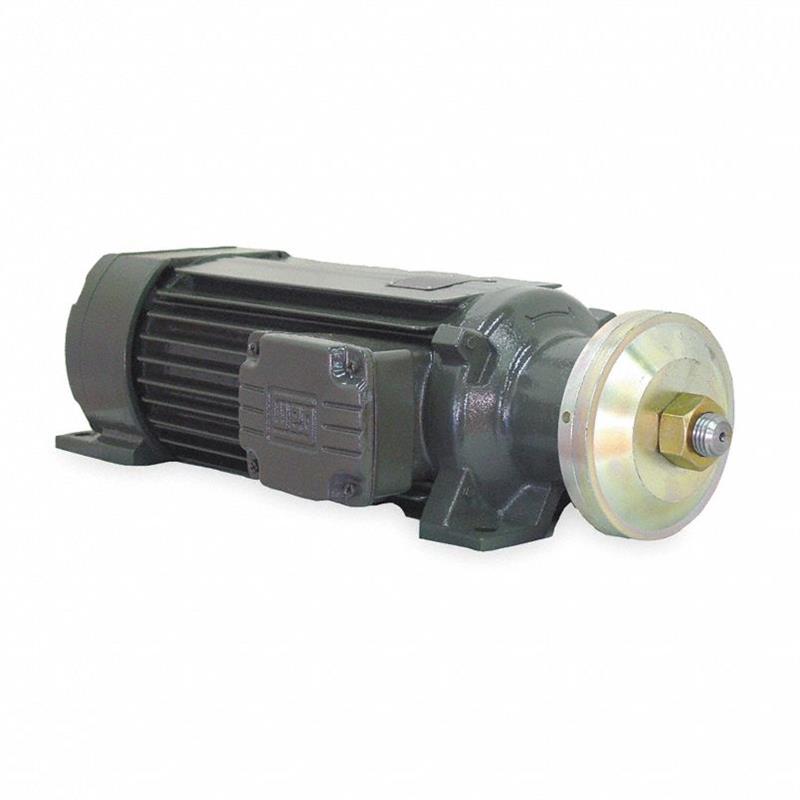

00336ES3ESA80SL WEG Motor, Saw Arbor (3 HP, 80S FRAME, 208-230/460 V, THREE PHASE, TEFC , 3500 RPM)

00336ES3ESA80SL WEG Motor, Saw Arbor (3 HP, 80S FRAME, 208-230/460 V, THREE PHASE, TEFC , 3500 RPM)

[COUNT] shoppers are looking at this right now

00336ES3ESA80SL

$862.41 USD
$969.00 USD $862.41 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

WEG Motor 00336ES3ESA80SL, 3 HP , 3500 RPM, 80S FRAME, 208-230/460 V , THREE PHASE, 60 Hz , TEFC , Saw Arbor Motor
Applications
Circular saws, Pendulum saws, Grinding machines, Polishing machines
Features
Saw Arbor Motors, 3-Phase, Cast Iron, Standard Efficiency, TEFC

Tech Specs

Brand
WEG Motors
Model Number
00336ES3ESA80SL
HP
3 HP
RPM
3500
FRAME
80S
VOLTAGE
208-230/460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
85
FEET
YES
TERMINAL BOX
LEFT
FLANGE
-
RATED CURRENT
9.49-8.58/4.29 A
LOCKED ROTOR CURRENT IL IN
7.3
LOCKED ROTOR CURRENT
62.6/31.3 A
LOCKED ROTOR TORQUE
3.3
BREAKDOWN TORQUE
3.7
EFFICIENCY 50
76
EFFICIENCY 75
79.5
EFFICIENCY 100
80.5
POWER FACTOR 50
0.65
POWER FACTOR 75
0.75
POWER FACTOR 100
0.8
SERVICE FACTOR
1.15
INERTIA KGM2
0.00315 kgm
INERTIA SQ FT
0.07475 sq.ft.
LOCKED ROTOR TIME
9 s
NOISE LEVEL
62 dB(A)
ALTITUDE
1000
DUTY CYCLE
S6 50%
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP54
NO-LOAD CURRENT
4.11/2.06 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
6.02 Nm
FULL LOAD TORQUE FT
4.44 .ft
SLIP
0.0278
DESIGN
N
TEMPERATURE RISE
80 K
BEARINGS D E
6307 ZZ
BEARINGS N D E
6207 ZZ
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
