00336ES1E182T-W22 WEG Motor (3 HP, 182T FRAME, 208-230/460 V, SINGLE PHASE, TEFC , 3520 RPM)
00336ES1E182T-W22 WEG Motor (3 HP, 182T FRAME, 208-230/460 V, SINGLE PHASE, TEFC , 3520 RPM)
SKU:00336ES1E182T-W22
Regular price
$640.58 USD
Regular price
Sale price
$640.58 USD
Unit price
/
per
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

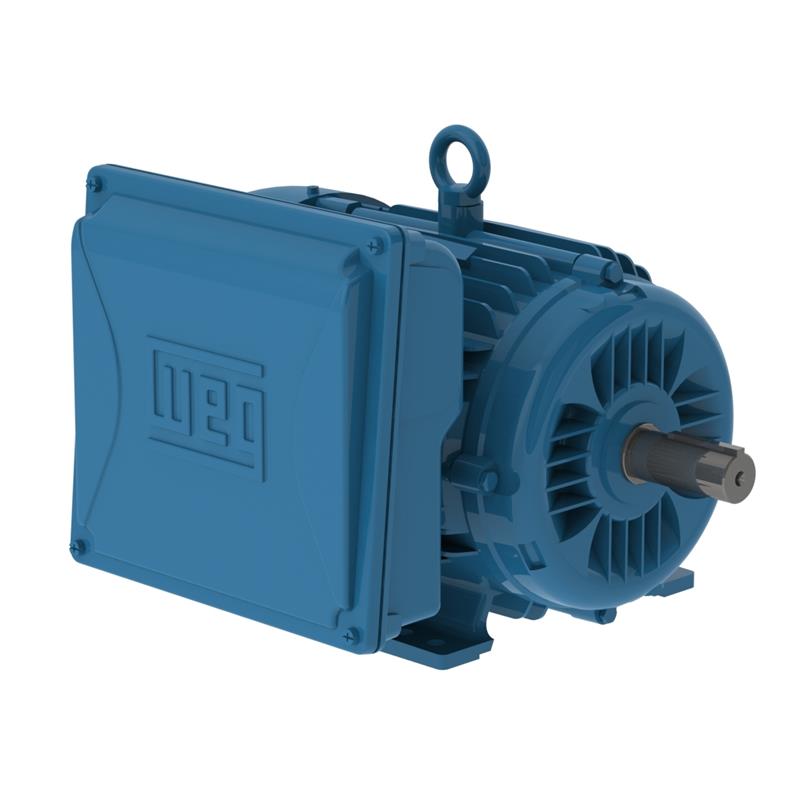

WEG Motor 00336ES1E182T, 3 HP, RPM: 3520, FRAME: 182T, 208-230/460 V, SINGLE PHASE: 60 Hz, : TEFC, WEG General Purpose Motor
Applications |
Pumps, fans, crushers, conveyors, machine tools, milling applications, centrifugal machines, presses, elevators, looms, grinders, woodworking, cooling, packaging equipment, other Severe Duty applications |
Features |
WEG General Purpose Single Phase Cast Iron Motor, Standard, TEFC |
Tech Specs | |
Brand |
WEG Motors |
Model Number |
00336ES1E182T |
HP |
3 HP |
RPM |
3520 |
FRAME |
182T |
VOLTAGE |
208-230/460 V |
PHASE |
SINGLE |
FREQUENCY |
60 Hz |
ENCLOSURE |
TEFC |
APPROXIMATE WEIGHT (lb) |
90 |
FEET |
YES |
TERMINAL BOX |
LEFT |
FLANGE |
- |
RATED CURRENT |
14.5-13.6/6.80 A |
LOCKED ROTOR CURRENT IL IN |
7.5 |
LOCKED ROTOR CURRENT |
102/51.0 A |
LOCKED ROTOR TORQUE |
2.4 |
BREAKDOWN TORQUE |
2.8 |
EFFICIENCY 50 |
72 |
EFFICIENCY 75 |
78 |
EFFICIENCY 100 |
80 |
POWER FACTOR 50 |
0.83 |
POWER FACTOR 75 |
0.9 |
POWER FACTOR 100 |
0.92 |
SERVICE FACTOR |
1.15 |
INERTIA KGM2 |
0.00659 kgm |
INERTIA SQ FT |
0.15638 sq.ft. |
LOCKED ROTOR TIME |
6 s |
NOISE LEVEL |
- |
ALTITUDE |
1000 |
DUTY CYCLE |
S1 |
AMBIENT TEMPERATURE |
-20C - +40C |
DEGREE OF PROTECTION |
IP55 |
NO-LOAD CURRENT |
5.00/2.50 A |
INSULATION CLASS |
F |
FULL LOAD TORQUE NM |
5.99 Nm |
FULL LOAD TORQUE FT |
4.42 .ft |
SLIP |
0.0222 |
DESIGN |
- |
TEMPERATURE RISE |
80 K |
BEARINGS D E |
6206 ZZ |
BEARINGS N D E |
6206 ZZ |
REGREASING INTERVAL D E |
- |
REGREASING INTERVAL N D E |
- |
GREASE AMOUNT D E |
- |
GREASE AMOUNT N D E |
- |
