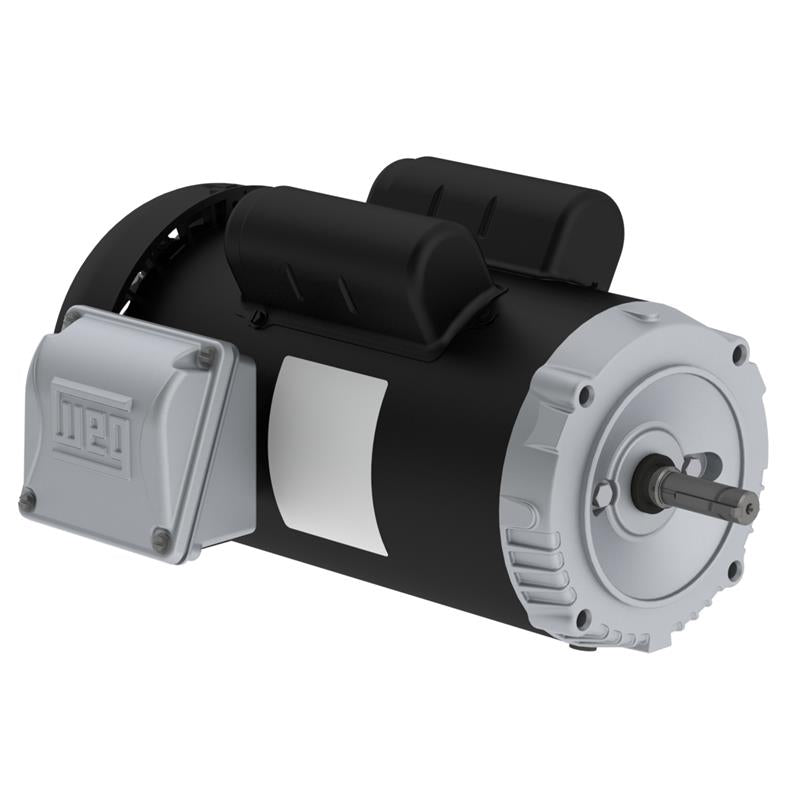

00336ES1DJPR56C-S WEG Jet Pump Motor (3 HP, G56H FRAME, 230 V, SINGLE PHASE, TEFC , 3480 RPM)
00336ES1DJPR56C-S WEG Jet Pump Motor (3 HP, G56H FRAME, 230 V, SINGLE PHASE, TEFC , 3480 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:00336ES1DJPR56C-S
Regular price
$432.21 USD
Regular price
$555.00 USD
Sale price
$432.21 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
WEG Motor 00336ES1DJPR56C-S, 3 HP , 3480 RPM, G56H FRAME, 230 V , SINGLE PHASE, 60 Hz , TEFC , Jet Pump Motor
| Applications |
|
The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads. |
| Features |
| Jet Pump Motor, Single Phase, Rolled Steel, Standard Efficiency, TEFC |
Tech Specs | |
Brand |
WEG Motors |
Model Number |
00336ES1DJPR56C-S |
HP |
3 HP |
RPM |
3480 |
FRAME |
G56H |
VOLTAGE |
230 V |
PHASE |
SINGLE |
FREQUENCY |
60 Hz |
ENCLOSURE |
TEFC |
APPROXIMATE WEIGHT (lb) |
53 |
FEET |
NO |
TERMINAL BOX |
LEFT |
FLANGE |
FC-149 |
RATED CURRENT |
13.0 A |
LOCKED ROTOR CURRENT IL IN |
7.8 |
LOCKED ROTOR CURRENT |
101 A |
LOCKED ROTOR TORQUE |
2.5 |
BREAKDOWN TORQUE |
2.5 |
EFFICIENCY 50 |
75 |
EFFICIENCY 75 |
79 |
EFFICIENCY 100 |
80 |
POWER FACTOR 50 |
0.82 |
POWER FACTOR 75 |
0.9 |
POWER FACTOR 100 |
0.93 |
SERVICE FACTOR |
1.15 |
INERTIA KGM2 |
0.00400 kgm |
INERTIA SQ FT |
0.09492 sq.ft. |
LOCKED ROTOR TIME |
6 s |
NOISE LEVEL |
- |
ALTITUDE |
1000 |
DUTY CYCLE |
S1 |
AMBIENT TEMPERATURE |
-20C - +40C |
DEGREE OF PROTECTION |
IP55 |
NO-LOAD CURRENT |
4.50 A |
INSULATION CLASS |
F |
FULL LOAD TORQUE NM |
6.06 Nm |
FULL LOAD TORQUE FT |
4.47 .ft |
SLIP |
0.0333 |
DESIGN |
- |
TEMPERATURE RISE |
105 K |
BEARINGS D E |
6204 2RS |
BEARINGS N D E |
6203 2RS |
REGREASING INTERVAL D E |
- |
REGREASING INTERVAL N D E |
- |
GREASE AMOUNT D E |
- |
GREASE AMOUNT N D E |
- |
