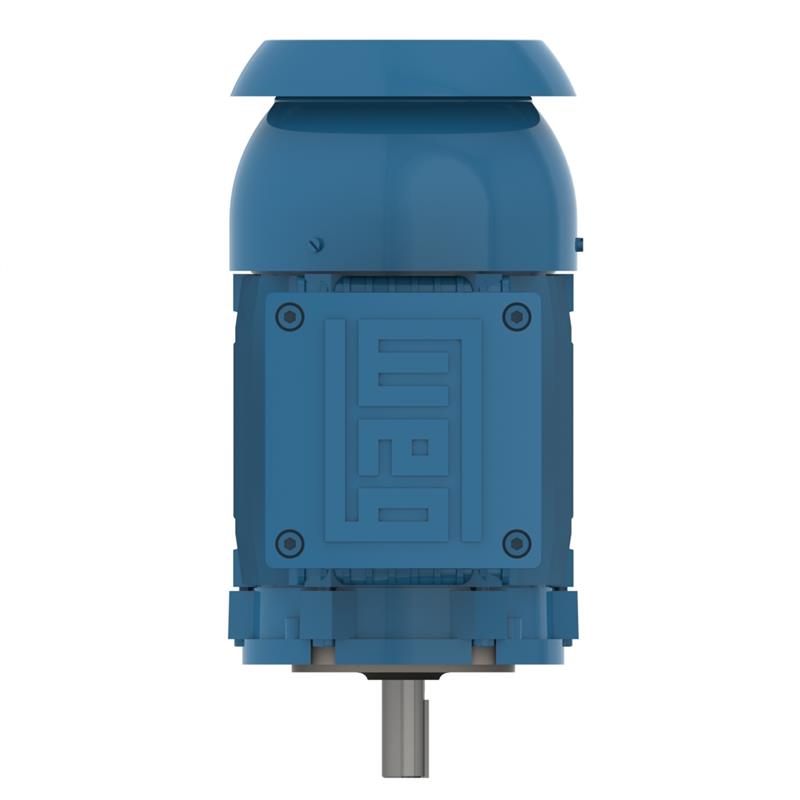

00318XT3ER182TC WEG Explosion Proof Motor (3 HP, 1800 RPM, 3 Phase, 182TC Frame, 208-230/460 Voltage, Explosion Proof)
00318XT3ER182TC WEG Explosion Proof Motor (3 HP, 1800 RPM, 3 Phase, 182TC Frame, 208-230/460 Voltage, Explosion Proof)
No reviews
SKU:00318XT3ER182TC
Regular price
$1,018.06 USD
Regular price
Sale price
$1,018.06 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG 00318XT3ER182TC, Series, 3 HP, 2.2 KW, 1800 RPM, 3 Phase, 182TC Frame, 208-230/460 Voltage, Explosion Proof
| Applications | |
| WEG Explosion Proof motors are suitable for applications requiring UL or CSA certification for hazardous locations. | |
| Features | |
| Class F insulation (Impregnation Resin and Magnet wire are class H) | |
| F1 Mounted (Cast Iron frames are F2 convertible) | |
| Stainless Steel Nameplate - Laser etched with high contrast background | |
| All frames with regreasable ball bearings (Frames 364T and up) | |
| CSA Approved - File LR50962 | |
| UL Listed - File E87848 | |
Specifications | |
Brand |
WEG |
Catalog Number |
00318XT3ER182TC |
Type |
Explosion Proof |
HP |
3 |
KW |
2.2 |
RPM |
1800 |
Phase |
3 |
Service Factor |
1.15 |
Frame |
182TC |
Voltage |
208-230/460 |
Enclosure |
Explosion Proof |
Mount |
Footless |
Full Load Amps |
3.91 |
Warranty |
1 Year |
Support Documents (pdf) | ||||
