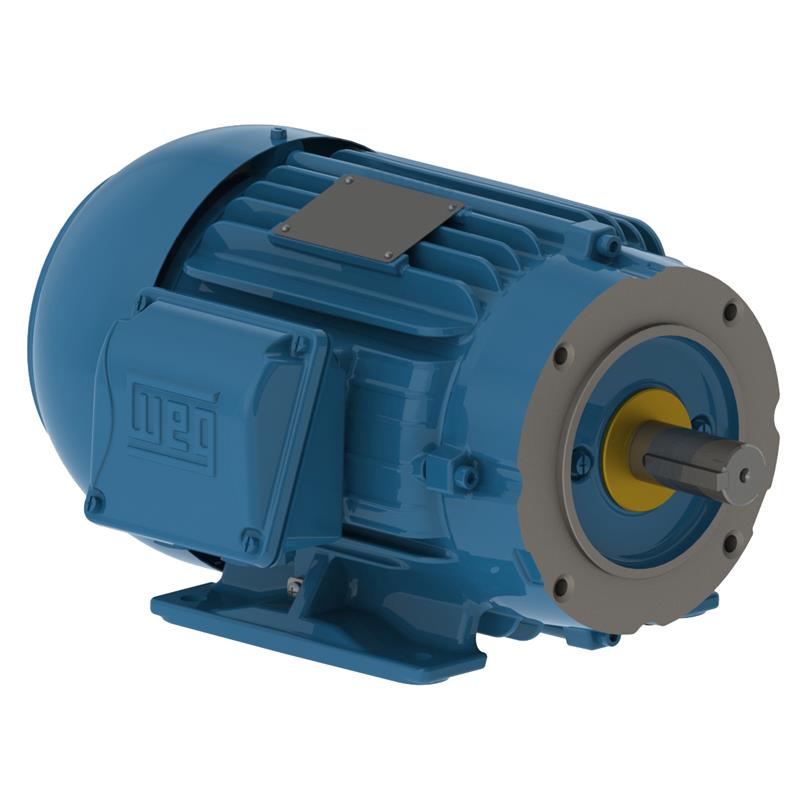

00318ST3PIE182TC-W22 WEG Motor (3 HP, 182T FRAME, 200 V, THREE PHASE, TEFC , 1760 RPM)

00318ST3PIE182TC-W22 WEG Motor (3 HP, 182T FRAME, 200 V, THREE PHASE, TEFC , 1760 RPM)

00318ST3PIE182TC-W22

$939.36 USD
$939.36 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 00318ST3PIE182TC-W22, 3 HP, RPM: 1760, FRAME: 182T, 200 V, THREE PHASE: 60 Hz, : TEFC, WEG Motor

Applications
Pumping applications, Pulp and paper mills, ical, Other
Features
IEEE 841 Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC

Tech Specs

Brand
WEG Motors
Model Number
00318ST3PIE182TC-W22
HP
3 HP
RPM
1760
FRAME
182T
VOLTAGE
200 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT LB
90
FEET
YES
TERMINAL BOX
LEFT
FLANGE
FC-184
RATED CURRENT
8.92 A
LOCKED ROTOR CURRENT IL IN
8.1
LOCKED ROTOR CURRENT
72.3 A
LOCKED ROTOR TORQUE
2.3
BREAKDOWN TORQUE
3.4
EFFICIENCY 50
86.5
EFFICIENCY 75
88.5
EFFICIENCY 100
89.5
POWER FACTOR 50
0.61
POWER FACTOR 75
0.73
POWER FACTOR 100
0.79
SERVICE FACTOR
1.25
INERTIA KGM2
0.01433 kgm
INERTIA SQ FT LB
0.34005 sq.ft.
LOCKED ROTOR TIME
23 s
NOISE LEVEL
56 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
4.60 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
12.0 Nm
FULL LOAD TORQUE LB FT
8.83 .ft
SLIP
0.0222
DESIGN
B
TEMPERATURE RISE
80 K
BEARINGS D E
6207 C3
BEARINGS N D E
6206 C3
REGREASING INTERVAL D E
20000 h
REGREASING INTERVAL N D E
20000 h
GREASE AMOUNT D E
7 g
GREASE AMOUNT N D E
5 g
-
-
