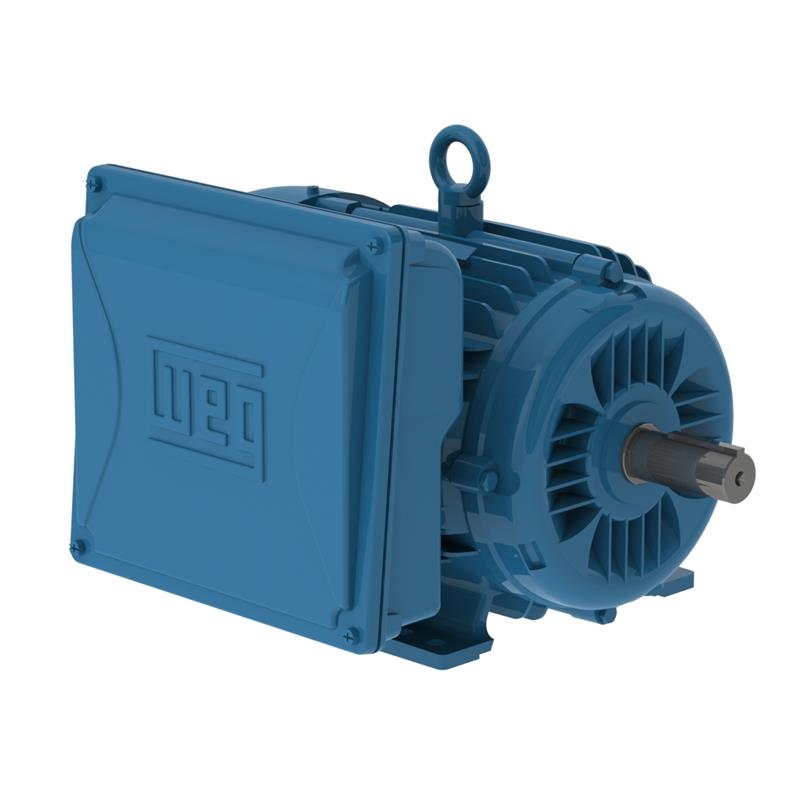

00318ES1E184T-W22 WEG Motor (3 HP, 184T FRAME, 208-230/460 V, SINGLE PHASE, TEFC , 1750 RPM)

00318ES1E184T-W22 WEG Motor (3 HP, 184T FRAME, 208-230/460 V, SINGLE PHASE, TEFC , 1750 RPM)

[COUNT] shoppers are looking at this right now

00318ES1E184T-W22

$777.86 USD
$874.00 USD $777.86 USD
Sale Sold out
Shipping calculated at checkout.

WEG Motor 00318ES1E184T, 3 HP, RPM: 1750, FRAME: 184T, 208-230/460 V, SINGLE PHASE: 60 Hz, : TEFC, WEG General Purpose Motor
Applications
Pumps, fans, crushers, conveyors, machine tools, milling applications, centrifugal machines, presses, elevators, looms, grinders, woodworking, cooling, packaging equipment, other Severe Duty applications
Features
WEG General Purpose Single Phase Cast Iron Motor, Standard, TEFC

Tech Specs

Brand
WEG Motors
Model Number
00318ES1E184T
HP
3 HP
RPM
1750
FRAME
184T
VOLTAGE
208-230/460 V
PHASE
SINGLE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
97
FEET
YES
TERMINAL BOX
LEFT
FLANGE
-
RATED CURRENT
14.7-13.6/6.80 A
LOCKED ROTOR CURRENT IL IN
7.5
LOCKED ROTOR CURRENT
102/51.0 A
LOCKED ROTOR TORQUE
2.8
BREAKDOWN TORQUE
2.5
EFFICIENCY 50
67
EFFICIENCY 75
74
EFFICIENCY 100
77
POWER FACTOR 50
0.84
POWER FACTOR 75
0.9
POWER FACTOR 100
0.93
SERVICE FACTOR
1.15
INERTIA KGM2
0.01310 kgm
INERTIA SQ FT
0.31086 sq.ft.
LOCKED ROTOR TIME
6 s
NOISE LEVEL
-
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
6.00/3.00 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
12.0 Nm
FULL LOAD TORQUE FT
8.88 .ft
SLIP
0.0278
DESIGN
-
TEMPERATURE RISE
80 K
BEARINGS D E
6307 ZZ
BEARINGS N D E
6206 ZZ
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
