WEG

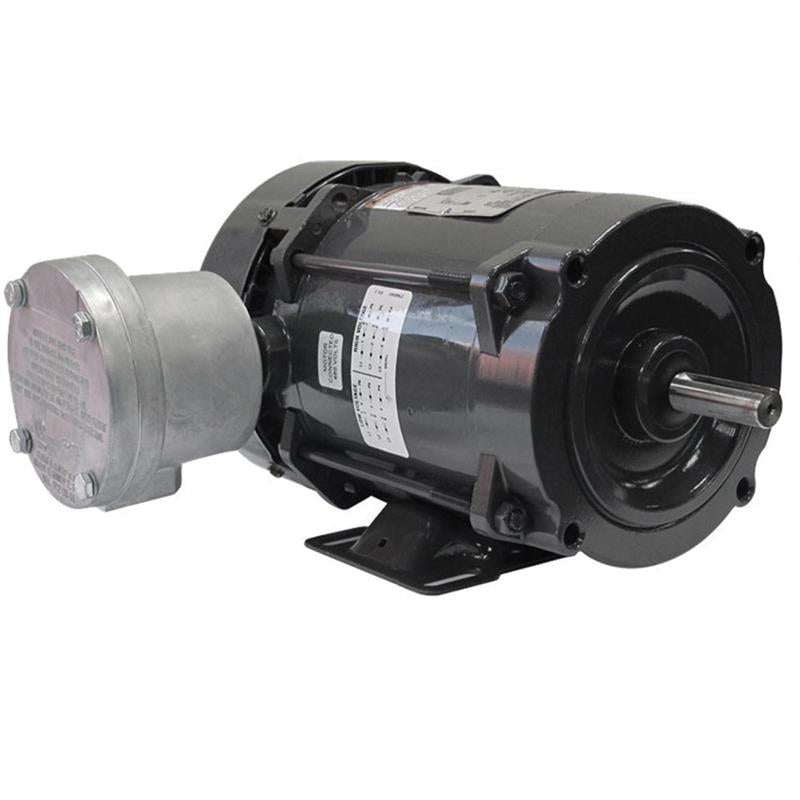

00236XS1C56H WEG Explosion Proof Motor (2 HP, 3600 RPM, 1 Phase, 56H Frame, 208-230 Voltage, Explosion Proof)
00236XS1C56H WEG Explosion Proof Motor (2 HP, 3600 RPM, 1 Phase, 56H Frame, 208-230 Voltage, Explosion Proof)
SKU:00236XS1C56H
Regular price
$1,026.08 USD
Regular price
Sale price
$1,026.08 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG 00236XS1C56H, Series, 2 HP, 1.5 KW, 3600 RPM, 1 Phase, 56H Frame, 208-230 Voltage, Explosion Proof
| Applications | |
| WEG Explosion Proof motors are suitable for applications requiring UL or CSA certification for hazardous locations. | |
| Features | |
| Class F insulation (Impregnation Resin and Magnet wire are class H) | |
| F1 Mounted (Cast Iron frames are F2 convertible) | |
| Stainless Steel Nameplate - Laser etched with high contrast background | |
| All frames with regreasable ball bearings (Frames 364T and up) | |
| CSA Approved - File LR50962 | |
| UL Listed - File E87848 | |
Specifications | |
Brand |
WEG |
Catalog Number |
00236XS1C56H |
Type |
Explosion Proof |
HP |
2 |
KW |
1.5 |
RPM |
3600 |
Phase |
1 |
Service Factor |
1 |
Frame |
56H |
Voltage |
208-230 |
Enclosure |
Explosion Proof |
Mount |
Foot Mount |
Full Load Amps |
9.8 |
Warranty |
1 Year |
Support Documents (pdf) |
