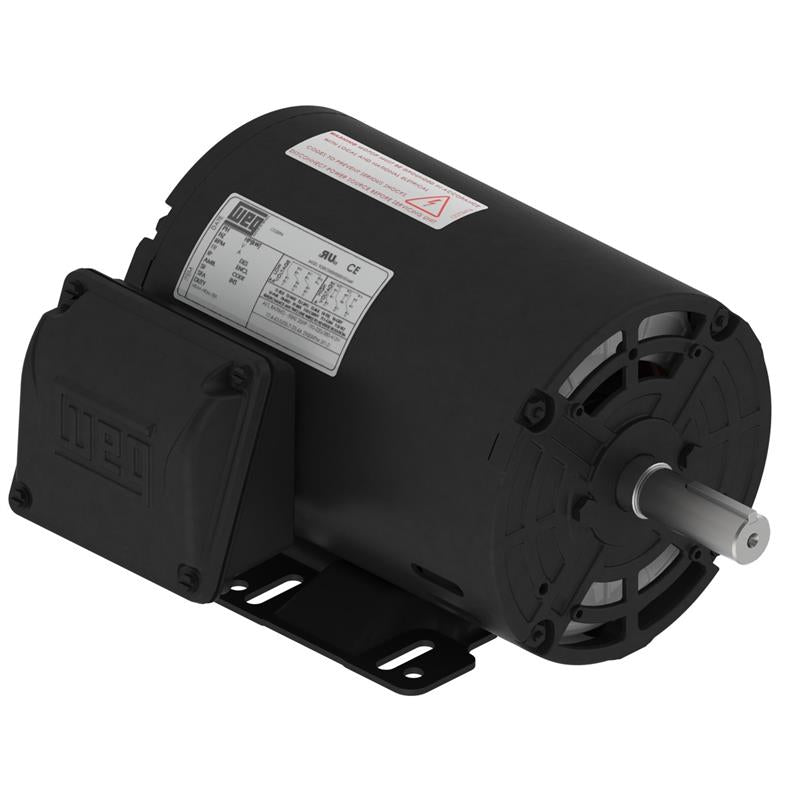

00236OT3H145T-S WEG Motor (2 HP, 3600 RPM, 3 Phase, 60 Hz, 143/5T Frame, ODP, 575 V, Foot-Mount)

00236OT3H145T-S WEG Motor (2 HP, 3600 RPM, 3 Phase, 60 Hz, 143/5T Frame, ODP, 575 V, Foot-Mount)

SKU:00236OT3H145T-S

Regular price $354.90 USD
Regular price Sale price $354.90 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG 00236OT3H145T-S, 2 HP, 3600 RPM, 3 Phase, 60 Hz, 143/5T Frame, ODP, 575 V, Foot-Mount

Applications
WEG Open Drip Proof (ODP) motor is a general purpose line designed for environments where dirt and moisture are minimal. The ODP cast iron frame is designed to provide maximum ventilation and heat dissipation, offering lowvibration levels, high mechanical stiffness and durability. Widely used in applications such as compressors, pumps and chillers, the ODP motor line meets or exceeds the efficiency levels determined by International Standardsand the minimum efficiency level programs in worldwide.
Features
Rated Output: 0.25 to 25 HP
Number of Poles: 2 through 6
Class F insulation
Frame Sizes: NEMA 56 to 254/6T
Efficiency levels: NEMA Premium
Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V)
IP21 standard
F1 mount as standard
Foot mount / C-face / Footless availability
Enclosure: ODP
Aluminum endshields

Specifications

Brand
WEG
Catalog Number
00236OT3H145T-S
Type
General Purpose Motor
HP
2
RPM
3600
Phase
3
Frequency
60 Hz
Frame
143/5T
Enclosure
ODP
Voltage
575
Mounting
Foot-Mount
Full Load Amps
1.9
Full Load Efficiency
85.5
Frame Material
Rolled Steel
Service Factor
1.15
"C" Dimensions
11.969
Warranty
1 Year
