WEG

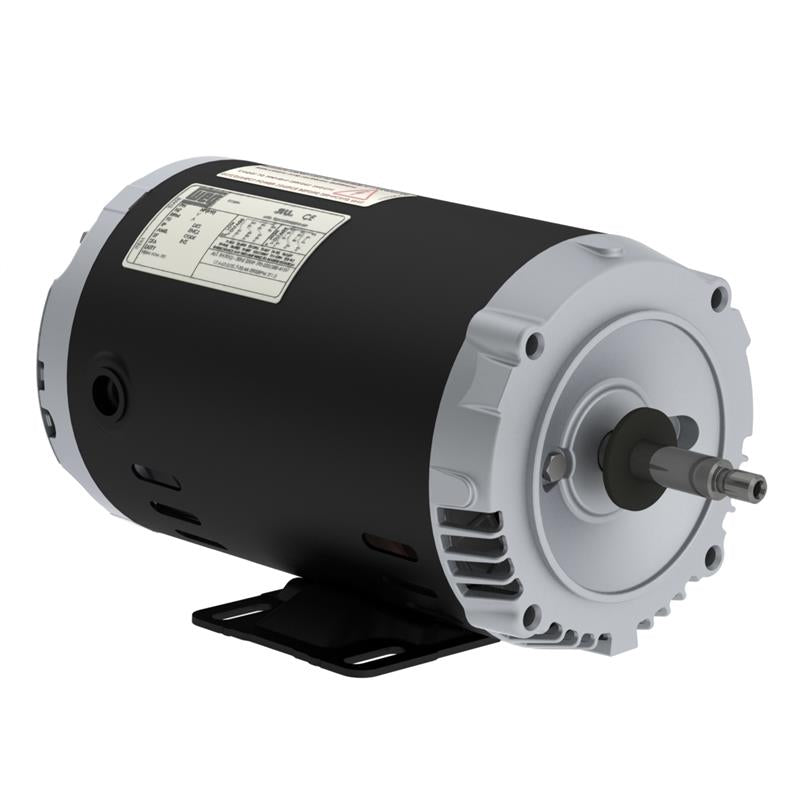

00236OS3EJP56J-S WEG Jet Pump Motor (2 HP, D56 FRAME, 208-230/460 V, THREE PHASE, ODP , 3460 RPM)
00236OS3EJP56J-S WEG Jet Pump Motor (2 HP, D56 FRAME, 208-230/460 V, THREE PHASE, ODP , 3460 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:00236OS3EJP56J-S
Regular price
$246.09 USD
Regular price
$316.00 USD
Sale price
$246.09 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
WEG Motor 00236OS3EJP56J-S, 2 HP , 3460 RPM, D56 FRAME, 208-230/460 V , THREE PHASE, 60 Hz , ODP , Jet Pump Motor
| Applications |
| Features |
| Jet Pump Motors, 3-Phase, Rolled Steel, Standard Efficiency, ODP |
Tech Specs | |
Brand |
WEG Motors |
Model Number |
00236OS3EJP56J |
HP |
2 HP |
RPM |
3460 |
FRAME |
D56 |
VOLTAGE |
208-230/460 V |
PHASE |
THREE |
FREQUENCY |
60 Hz |
ENCLOSURE |
ODP |
APPROXIMATE WEIGHT (lb) |
39 |
FEET |
YES |
TERMINAL BOX |
LEFT |
FLANGE |
FC-149 |
RATED CURRENT |
5.70-5.36/2.68 A |
LOCKED ROTOR CURRENT IL IN |
8.1 |
LOCKED ROTOR CURRENT |
43.4/21.7 A |
LOCKED ROTOR TORQUE |
3.3 |
BREAKDOWN TORQUE |
3.4 |
EFFICIENCY 50 |
78 |
EFFICIENCY 75 |
80.5 |
EFFICIENCY 100 |
81 |
POWER FACTOR 50 |
0.68 |
POWER FACTOR 75 |
0.8 |
POWER FACTOR 100 |
0.87 |
SERVICE FACTOR |
1.20 (1.00 at 208V) |
INERTIA KGM2 |
0.00174 kgm |
INERTIA SQ FT |
0.04129 sq.ft. |
LOCKED ROTOR TIME |
10 s |
NOISE LEVEL |
- |
ALTITUDE |
1000 |
DUTY CYCLE |
S1 |
AMBIENT TEMPERATURE |
-20C - +40C |
DEGREE OF PROTECTION |
IP21 |
NO-LOAD CURRENT |
2.58/1.29 A |
INSULATION CLASS |
B |
FULL LOAD TORQUE NM |
4.06 Nm |
FULL LOAD TORQUE FT |
2.99 .ft |
SLIP |
0.0389 |
DESIGN |
A |
TEMPERATURE RISE |
80 K |
BEARINGS D E |
6204 2RS |
BEARINGS N D E |
6202 2RS |
REGREASING INTERVAL D E |
- |
REGREASING INTERVAL N D E |
- |
GREASE AMOUNT D E |
- |
GREASE AMOUNT N D E |
- |
