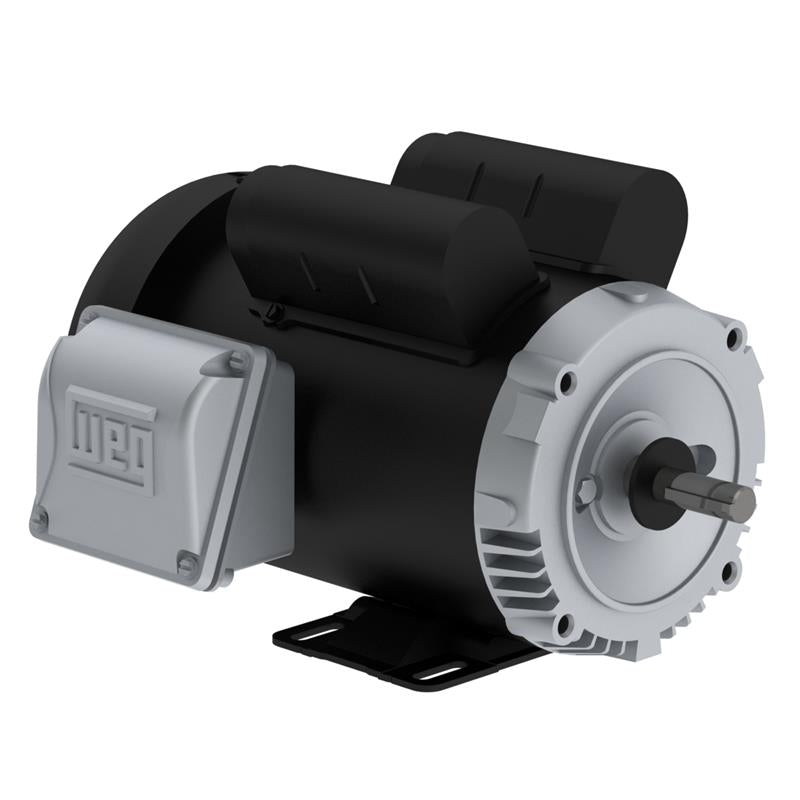

00236ES1BJP56J-S WEG Motor, Jet Pump (2 HP, F56H FRAME, 115/208-230 V, SINGLE PHASE, TEFC , 3470 RPM)
00236ES1BJP56J-S WEG Motor, Jet Pump (2 HP, F56H FRAME, 115/208-230 V, SINGLE PHASE, TEFC , 3470 RPM)
SKU:00236ES1BJP56J-S
Regular price
$354.18 USD
Regular price
Sale price
$354.18 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG Motor 00236ES1BJP56J-S, 2 HP , 3470 RPM, F56H FRAME, 115/208-230 V , SINGLE PHASE, 60 Hz , TEFC , Jet Pump Motor
| Applications |
|
The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and threaded shaft end, these versatile single-phase motors provide torque and durability for several applications. |
| Features |
| Jet Pump Motor, Single Phase, Rolled Steel, Standard Efficiency, TEFC |
Tech Specs | |
Brand |
WEG Motors |
Model Number |
00236ES1BJP56J-S |
HP |
2 HP |
RPM |
3470 |
FRAME |
F56H |
VOLTAGE |
115/208-230 V |
PHASE |
SINGLE |
FREQUENCY |
60 Hz |
ENCLOSURE |
TEFC |
APPROXIMATE WEIGHT (lb) |
44 |
FEET |
YES |
TERMINAL BOX |
LEFT |
FLANGE |
FC-149 |
RATED CURRENT |
20.0/10.6-10.0 A |
LOCKED ROTOR CURRENT IL IN |
7 |
LOCKED ROTOR CURRENT |
140/70.0 A |
LOCKED ROTOR TORQUE |
2.5 |
BREAKDOWN TORQUE |
2.4 |
EFFICIENCY 50 |
69 |
EFFICIENCY 75 |
73 |
EFFICIENCY 100 |
74 |
POWER FACTOR 50 |
0.72 |
POWER FACTOR 75 |
0.81 |
POWER FACTOR 100 |
0.87 |
SERVICE FACTOR |
1.15 (1.00 at 208V) |
INERTIA KGM2 |
0.00333 kgm |
INERTIA SQ FT |
0.07902 sq.ft. |
LOCKED ROTOR TIME |
6 s |
NOISE LEVEL |
- |
ALTITUDE |
1000 |
DUTY CYCLE |
S1 |
AMBIENT TEMPERATURE |
-20C - +40C |
DEGREE OF PROTECTION |
IP55 |
NO-LOAD CURRENT |
9.00/4.50 A |
INSULATION CLASS |
B |
FULL LOAD TORQUE NM |
4.05 Nm |
FULL LOAD TORQUE FT |
2.99 .ft |
SLIP |
0.0361 |
DESIGN |
- |
TEMPERATURE RISE |
80 K |
BEARINGS D E |
6204 2RS |
BEARINGS N D E |
6203 2RS |
REGREASING INTERVAL D E |
- |
REGREASING INTERVAL N D E |
- |
GREASE AMOUNT D E |
- |
GREASE AMOUNT N D E |
- |
